Hi all,

I'm using the NPrinting 16 and I'm creating a pixel perfect report.

My page kind is A4, and I want to put many charts into this report, but I don't know why I only can get 1 page for the pixelperfect report.

Could you please tell me how to make the pdf to 2 or more pages?

Thanks in advance.

Aiolos Zhao

[Ruggero_Piccoli]

Hi,

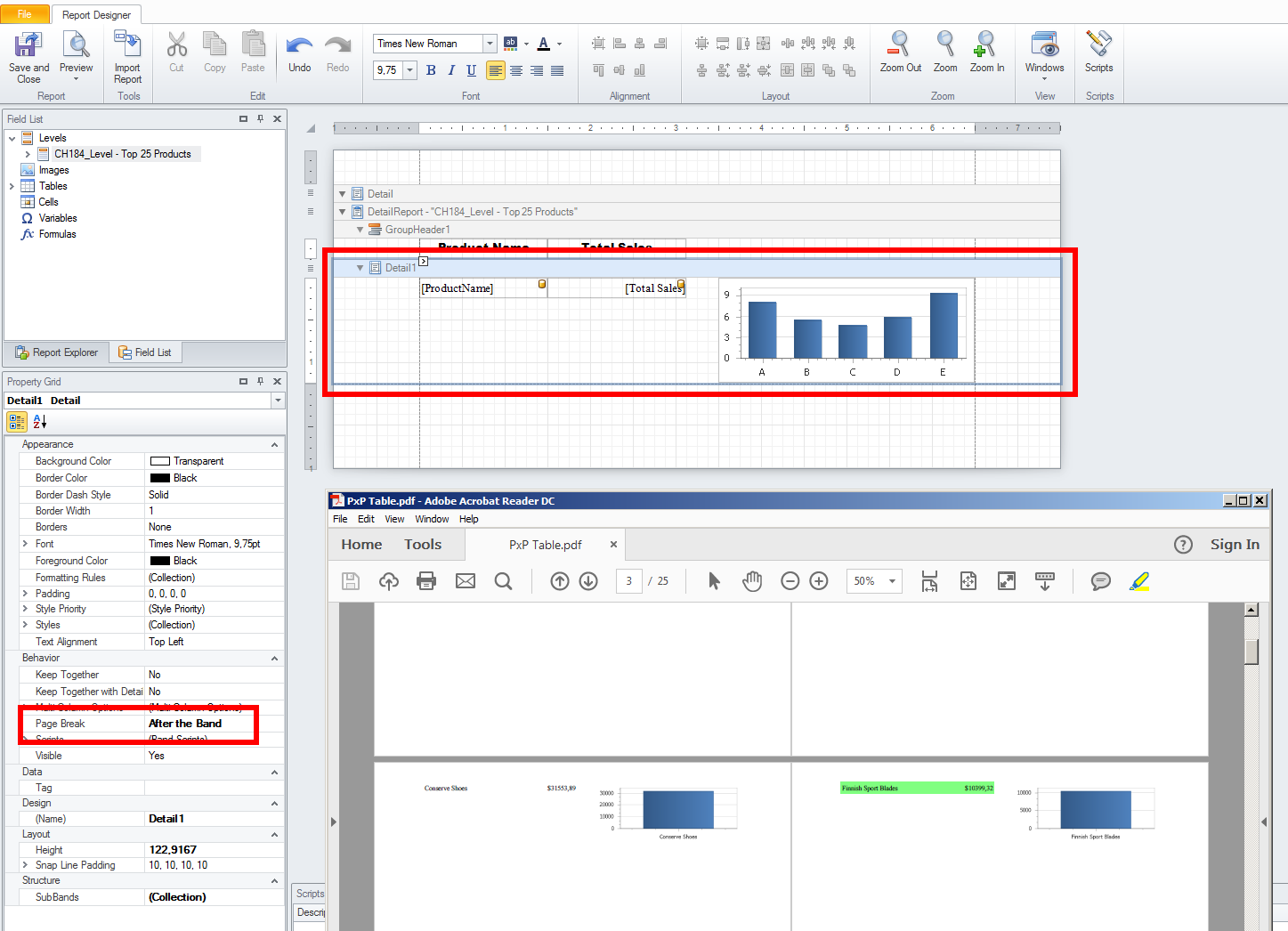

Select a band and set the Page Break property.

Best Regards,

Ruggero

---------------------------------------------

When applicable please mark the appropriate replies as CORRECT. This will help community members and Qlik Employees know which discussions have already been addressed and have a possible known solution. Please mark threads as HELPFUL if the provided solution is helpful to the problem, but does not necessarily solve the indicated problem. You can mark multiple threads as HELPFUL if you feel additional info is useful to others.

[uacg0009]

Hi Ruggero,

Sorry to reply late, actually I'm new to the pixelperfect report.

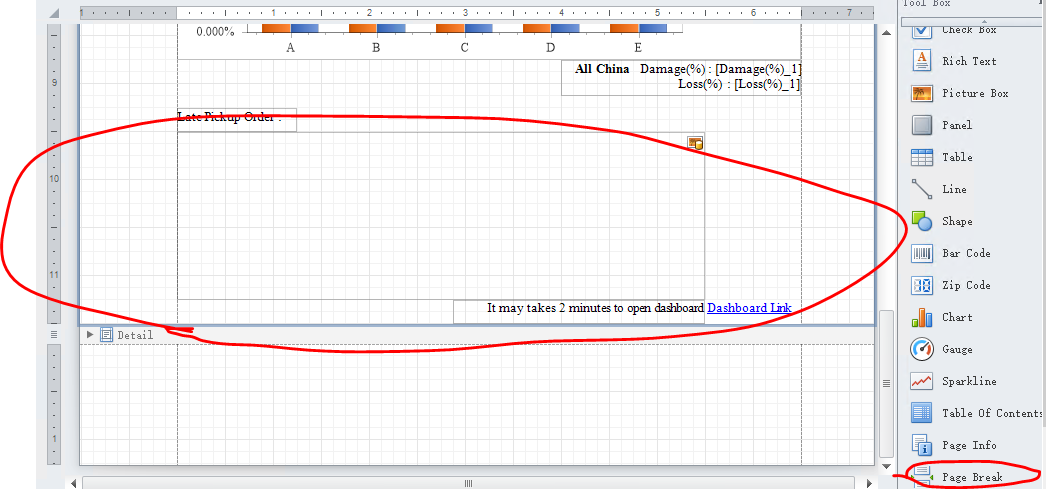

I put all my charts in the area above the "Details" area, is that ok?

and I found the function "Page Break", but I don't know where is band you said, cross-band?

And I also try to use the "page break" tool, it doesn't work..

Thanks.

Aiolos Zhao

[Ruggero_Piccoli · Accepted solution]

Hi,

First of al please read the PixlePerfect part of the help site. There are some useful examples.

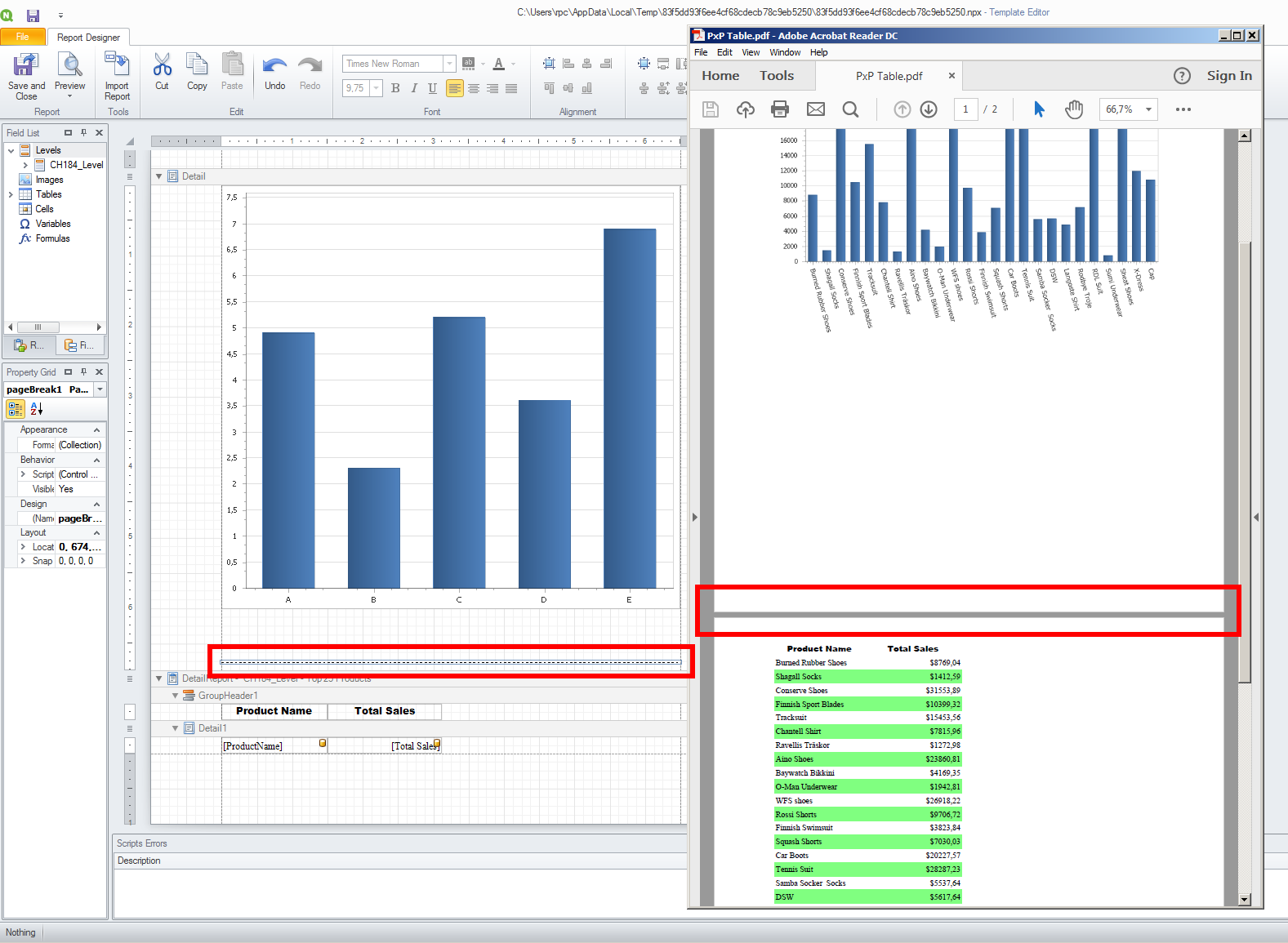

In the example below I added the Page Break object under the chart. On the right side you see the result. In this way I obtain the table in a single page.

Best Regards,

Ruggero

---------------------------------------------

When applicable please mark the appropriate replies as CORRECT. This will help community members and Qlik Employees know which discussions have already been addressed and have a possible known solution. Please mark threads as HELPFUL if the provided solution is helpful to the problem, but does not necessarily solve the indicated problem. You can mark multiple threads as HELPFUL if you feel additional info is useful to others.

[uacg0009]

Hi Ruggero,

Thank you a lot, I put all my charts into Details part, then it works now.
