Can you color the background of a listbox field red or the text in a listbox red?

[#1]

Hi all,

To start off, I am using Qlik View enterprise edition and loading data from a MySQL database.

I have a few list boxes on my main sheet and was wondering if anyone knew if it was possible for me to enter in a conditional expression into a specific list box that will change the background color OR the color of the text values to RED if a certain string is found within the values?

for example, the list box may look like this:

List Box 1
We predict that this project may fail by October 2017
It is our understanding and opinion that the project will surpass the budget by July 17, 2017
The project is 50% complete

In this example, I may want to turn the color of the list box text to red if the value contains the word 'fail'

I've tried a few conditional expressions but none have worked

If anyone has can confirm, please let me know

thanks!

[prieper]

You cannot change the color of listboxes depending any conditions.

You may think of displaying individual values in charts or textboxes instead.

[Anil_Babu_Samineni]

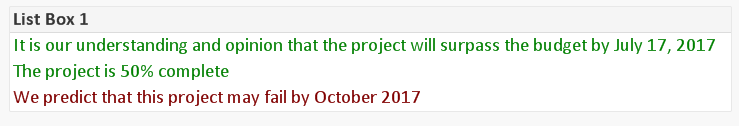

Like this?

=If(SubStringCount([List Box 1],'fail'), Red(), Green())

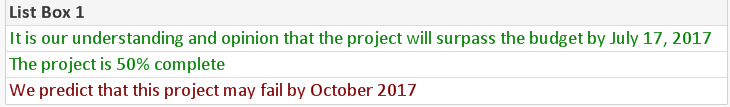

Or, Without Borders we can achieve

[tajmohamed30]

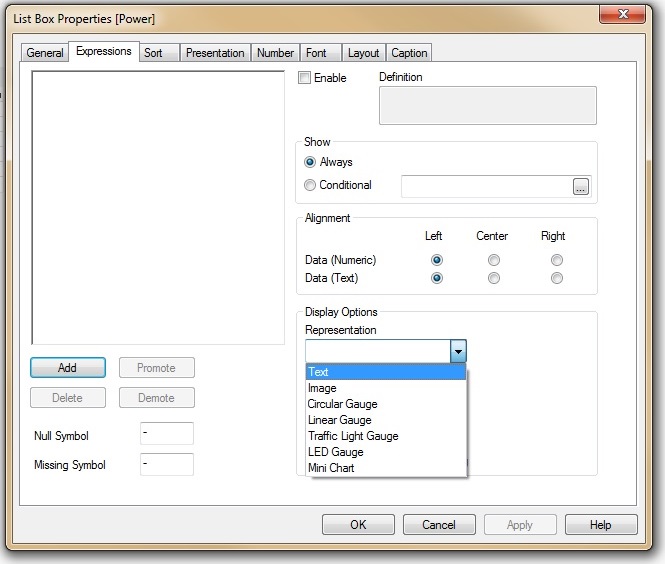

PFA attached, you can also,

go to List box properties -> presentation - Visualization e.g. LED (dont use QlikView Classic)

after that change background - select color transparence

[chaper]

Another work around is add conditional expression to list box and represent the value/text/image/guage as colored in red

[chaper]

Using expression in list as If(SubStringCount([List Box] ,'fail'),'qmem://<bundled>/BuiltIn/led_r.png', 'qmem://<bundled>/BuiltIn/led_g.png') .

Work around not exactly as per requirement

[chaper]

Check link below for using Chart as fake list box provided by johnw‌

how to change background colour of a list box

Another solution from amars‌

https://community.qlik.com/message/417393?et=watches.email.thread#417393

[prieper]

Would like to remind, that with all these workarounds you do loose some of the core-functionalities of a Listbox:
multiple selections, selections be text-search, advanced search etc.

Peter
