Creating Hierarchy with 2 Fields

[Anonymous]

Hi

I almost see the all Hierarchy examples with 3 fields I mean with 3 levels , Can someone please post an example of it with just 2 fields ,

I have 2 fields - Group and Function , Group is ParentId and Function is Child/Nodeid , I need to create a list box with Tree view structure .. which is used as a filter.

Thanks

[avinashelite]

In Hierarchy , every example has 3 field because 2 will be ID field and 1 will the name associated with that ID which will help you to easily identify the ID's with the name ..in your case try like this

Hierarchy (Child/Nodeid, Group , Child/Nodeid)

[#3]

Hi Ramya ,

Have a nice day.

folloe the link

Hierarchy in QlikView

[Anonymous]

Here is how I have written the script , can someone help me.. where I am going wrong , I don't get any value in Path field.. I have tried with & and / .. I just get blank path field

Table1:
load
"Date",
"Group",
if(Isnull("FC"),'0',"Count")as "Count1",
if(Isnull("FC"),'0',"FC")AS "FC1",
"Count",
"FC",
"Service API",
"FCI",
"RYG_FCI",
"RYG_TP99",
"SLA_FCI",
"SLA_TP99",
"TP50",
"TP90",
"TP99",
"TP999"
;

SQL SELECT *
FROM "Operational Xcellence: Services Time Series bjznuur2b";

ServiceTimeSeries:
Hierarchy(NodeID,ParentID,NodeName,Path,'&',Depth)
Load
"Group" as ParentID,
"Function" as NodeID,
"Function" as NodeName,
if(WildMatch("Group",'*Payments*'),'Payments',
if(WildMatch("Group",'*Payroll*'),'Payroll',"Group")) as FCIGroup,
'' as Status,
*;


LOAD
"Date" as "ServiceTimeSeries.Date",
"Group",
"Service API" as "Function",
("Count1") as "RequestCount",
("FC1") AS "FCCount",
("Count") as "RequestCount_All",
("FC") AS "FCCount_All",
"FCI",
"RYG_FCI",
"RYG_TP99",
"SLA_FCI",
"SLA_TP99",
"TP50",
"TP90",
"TP99",
"TP999"
Resident Table1 where "Date" >= '9/1/2015';
Drop Table Table1;

[kaushiknsolanki]

Hi You can below script.

Hierarchy(NodeID,ParentID,NodeName,ParentName,NodeName,Path,'&',Depth)
Load
"Group" as ParentID,
"Function" as NodeID,
"Function" as NodeName,
if(WildMatch("Group",'*Payments*'),'Payments',
if(WildMatch("Group",'*Payroll*'),'Payroll',"Group")) as FCIGroup,
'' as Status,
*;

Regards,

Kaushik Solanki

[avinashelite]

try like this

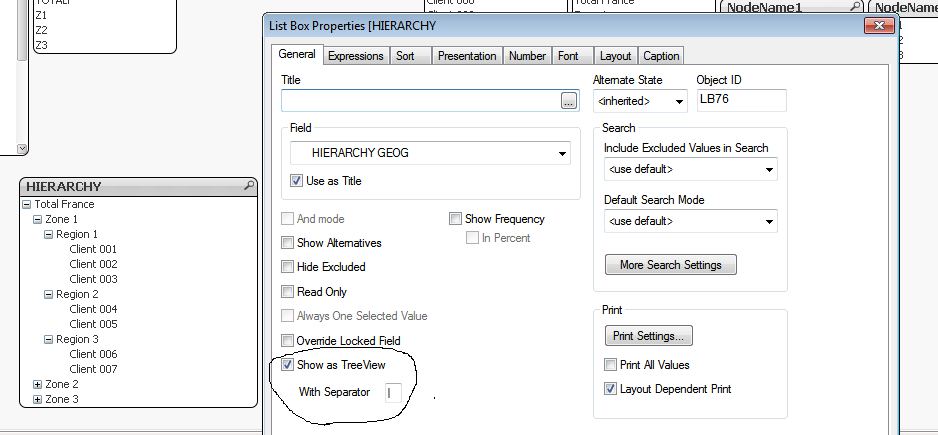

HIERARCHY(GEOG_KEY, PARENT_KEY, GEOG_DESC, [GEOG PARENT NAME], GEOG_DESC, [HIERARCHY

GEOG], '|', 'HIERARCHY DEPTH')

ServiceTimeSeries:
Hierarchy(NodeID,ParentID,NodeName,,,Path,'&',Depth)
Load
"Group" as ParentID,
"Function" as NodeID,
"Function" as NodeName,
if(WildMatch("Group",'*Payments*'),'Payments',
if(WildMatch("Group",'*Payroll*'),'Payroll',"Group")) as FCIGroup,
'' as Status,

[Anonymous]

By running the script Avinash gave I still get blank Path ,

By running Kaushik's script I get some values but not as a Tree view and they don't seem to be right , I have selected & in the list box presentation

Attached my App .. the Data in the Function is Bit tricky it has lots of / that's the reason I chose & to split the data

[#8]

Hi Ramya,

GEOGH:

HIERARCHY(ParentId, NodeId, NodeName, [GEOG PARENT NAME], NodeName, [HIERARCHY

GEOG], '|', 'HIERARCHY DEPTH')

LOAD

Group as ParentId,

Functionas as NodeId,

Functionas as NodeName

if(WildMatch("Group",'*Payments*'),'Payments',
if(WildMatch("Group",'*Payroll*'),'Payroll',"Group")) as FCIGroup,
'' as Status,

From

[..\..\Downloads\DataHierarchy.xlsx]

(ooxml, embedded labels, table is HIERARCHY);

[Anonymous]

I get a syntax error with the above script , can you please take a look at the attached app script? IF any one trying to check my app , it has an alternate state for the Tab just for info as adding new objects to the sheet might not show data unless its in default state.

[#10]

Sorry ramya i am using personal edition.

Wait for more answers
