Graph for a Bill of Quantities Table with Start and End Dates

[#1]

Hello,

I am new to Qlik and am looking for some help on the following.

I have a Bill of Quantities Table (in excel) with line tasks that have a total Value and start and end dates.

I have made a very simple example below:

Vessel	Task	Day Rate [$]	Days	Total Cost [$]	Date Start	Date Finish
Coastal Warrior	Mobilisation	1,000	14	14,000	01-01-2017	15-01-2017
Coastal Warrior	Working	2,000	20	40,000	15-1-2017	04-02-2017
Coastal Warrior	De-Mobilisation	1,000	5	5,000	04-02-2017	09-02-2017
Coastal Warrior	Crew	1,000	39	39,000	01-01-2017	09-02-2017

So HOW would I like to build a line graph (essentially an s-curve -> as Primavera would do) with:

X-axis Dimension - Date (by day)

Y-Axis Measure - Cumulative costs of all activities associated with each date

Eg. on the 01-01-2017 = total cost = $2000 -> $1000 (Vessel Mob 1 day) + $1000 (crew for 1 day)

So on the final day 09-02-2017 the measure would be $98,000.

Many thanks,

Rob

[sunny_talwar]

Check out the attached

Script

Table:

LOAD *,

  Date(Date_Start + IterNo() - 1) as Date

While Date_Start + IterNo() - 1 < Date_Finish;

LOAD * INLINE [

    Vessel, Task, Day_Rate, Days, Total_Cost, Date_Start, Date_Finish

    Coastal Warrior, Mobilisation, "1,000", 14, "14,000", 01-01-2017, 15-01-2017

    Coastal Warrior, Working, "2,000", 20, "40,000", 15-01-2017, 04-02-2017

    Coastal Warrior, De-Mobilisation, "1,000", 5, "5,000", 04-02-2017, 09-02-2017

    Coastal Warrior, Crew, "1,000", 39, "39,000", 01-01-2017, 09-02-2017

];

Chart

Dimension

Date

Expression

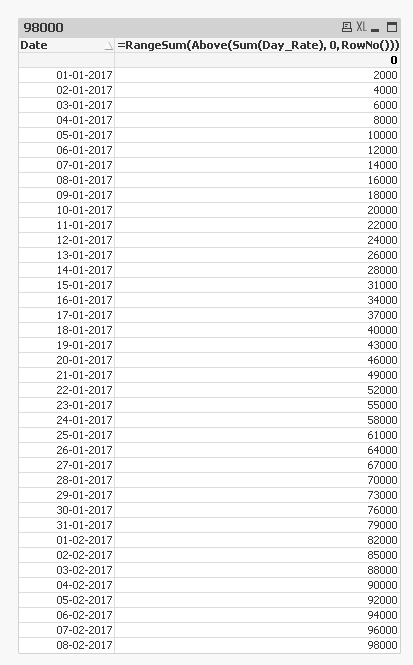

=RangeSum(Above(Sum(Day_Rate), 0, RowNo()))
