Grouping Results in a Bar Chart

[#1]

Hello, need some help and ideas.

I currently have a set of results for each individual for the precentage of time they spend focuusing on tasks - this is the expression.

=Sum({$<Source_Key={1},Response_Level_1={'Focus'}>}Ans_Percent)/Sum({$<Source_Key={1}>} TOTAL<User_Profile_ID_SourceDB> Ans_Percent)

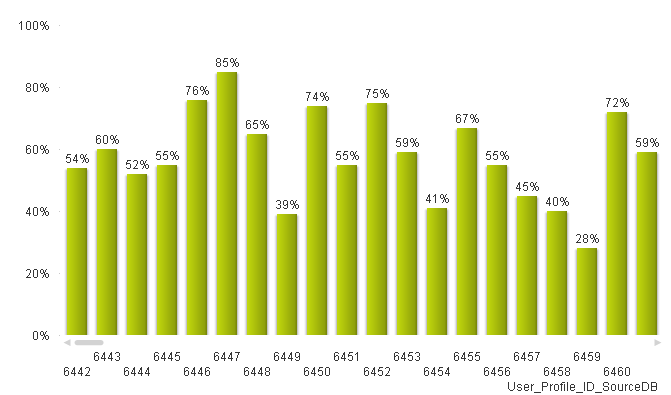

see chart below.

What I would like to be able to do is have a count of the results in a range e.g. count of people with a result of 0%-10%, 11%-20% and so on.

Presenting this back in a similar bar chart with percentage groups along the x axes and a count on the y axis

Thanks

Rob

[#2]

You can use class() function to achieve what you want.

Try class(yourExpression,10).

[#3]

hope u will resolve it by doing in script level..not in UI

[#4]

Hi Nikolaos, no that returned "no data" for the chart!

=Class(Sum({$<Source_Key={1},Response_Level_1={'Focus'}>}Ans_Percent)/Sum({$<Source_Key={1}>} TOTAL<User_Profile_ID_SourceDB> Ans_Percent),10)

[#5]

Are you saying this will be impossible in UI assuming you mean the QV interface /expresions

[stevelord]

I think I have a solution that can be translated to your data.  I had biometric data and needed counts of people with optimal, borderline, and high values for things like cholesterol and whatever.  So people with 0-199 cholesterol were counted up on a bar for Optimal, then people in borderline were counted up on a bar for Borderline, and so on.  (I actually chucked set analysis at the bar chart so I could do company vs all companies and such too.)

First, in the script itself I had dual if statements for the stratifications.  With your data this might look like

I can't tell which fields are what in your data because I don't write script like that just yet, but maybe you can reverse engineer my own example from below

CalculatedField: //first you'd want to use that formula on the existing fields to create the field you want to stratify in your barchart.

LOAD

UserId,

TestDate,

Year(TestDate as Year,

SUM(If({$<Source_Key={1},Response_Level_1={'Focus'}>}Ans_Percent)/Sum({$<Source_Key={1}>} TOTAL<User_Profile_ID_SourceDB> Ans_Percent) as [Focus Level]

FROM

Group By UserId, TestDate, Year(TestDate);

BandedField:

LOAD *,

If([Focus Level]>=0 AND [Focus Level]<=0.1), Dual ('Focus 0-10%,1'),

... //fill in the other actual bands by copy/pasting and updating the values for the range as desired.

If([Focus Level]>0.895 AND [Focus Level]<=1), Dual ('Focus 90-100%,10'))))))))))) as [Banded Focus Level]

Resident CalculatedField;

Drop table CalculatedField;

Then in the bar graph your dimension is the banded field that you made [Banded Focus Level].  Your expression is =Count(Aggr(User_Profile_ID_SourceDB, Year])) (Pretty much whatever you had in your group by back in the script, but the time component should be no smaller than you want for your graph- if it is for the week, dont put days in your chart's aggr function.)

I think I got you 99% there, but it may be a little bit of trial and error and you may want to export a tablebox to excel and calculate results to check whether your chart is working right.  If Users appear more than once and with different values, QV may discard their records.  I have use functions like aggr(max(TestDate), field, field)  and firstsortedvalue(BMI,-(TestDate*100000+BMI)) to make it grab most current or most current preferably non-0 value when conflicting records exist in a particular time grouping.  Using Timestamp() function on your dates in your script will help the max() and firstsortedvalue() functions work a little better too.  (Floor() willl increase conflicts and cause more discarding of records for same user on the same date.)

Here's an example chart with a piece of set analysis in it.  (basically just stuck a {State1} and {State2} after the aggr( part of the expression for each state.

[#7]

Hi Steve, this definitely sounds like a solution and the same approach I need to take.

Sadly I'm also not a programmer or writer of scripts but will be working with some other to see if we can put this together.

Much appreciate this direction.

Will post the result when I sort it out.

Thanks Rob

[stevelord]

Thanks. On the dual if statements I realized I made a small syntax mistake on the part inside the Dual()

So: Dual ('Focus 0-10%,1'), should be Dual ('Focus 0-10%’,1), and so on //the part inside the parenthesis to the left of the comma is text in single quotation marks, and the part to the right is a number value you assign. You’d number the stratifications according to the order you want them to be sorted. Everything else in the script I wrote looks correct to me on second look. The part with your formula wasn’t tested by me- I just copy/pasted your formula. As you say though, the approach should work if it can be translated and if the formula that created the underlying field is sound.

Goodluck!
