I need to build this chart in QlikView

[#1]

Hi Team

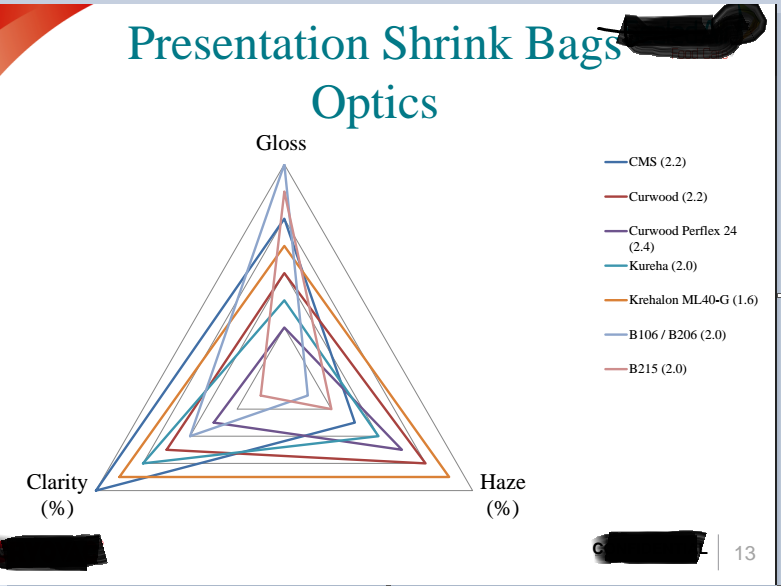

As per business requirement I need to build this chart in Qlikview.Can you please suggest Hoe can i make this type of chart in Qlikview

Thanks in advance

[JonnyPoole]

if all 3 measurements have the same axis you can do this with a synthetic dimension.

1. Create a radar chart

2. 1st dimension is   valuelist('Gloss','Haze','Clarity')

3. 2nd dimension is the lines you show above

4. the measure is

if( valuelist('Gloss','Haze','Clarity')  = 'Gloss',  sum(Gloss) ,

     if( valuelist('Gloss','Haze','Clarity') ='Haze',  ...

          if( valuelist('Gloss','Haze','Clarity') ='Clarity, ....

)))

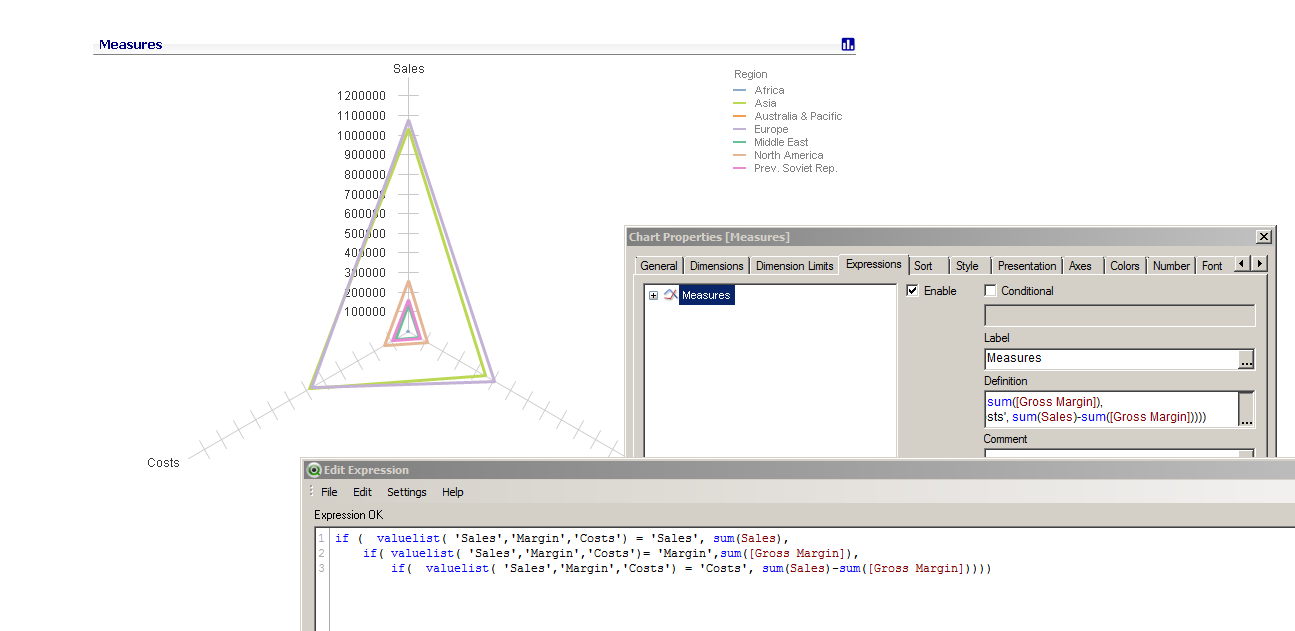

Here is my example (with diff data)

[MarcoWedel]

maybe also possible:

Pick(Match(valuelist('Gloss','Haze','Clarity'), 'Gloss', 'Haze', 'Clarity'), sum(Gloss), sum(Haze), sum(Clarity))

hope this helps

regards

Marco

[#4]

HI Poole

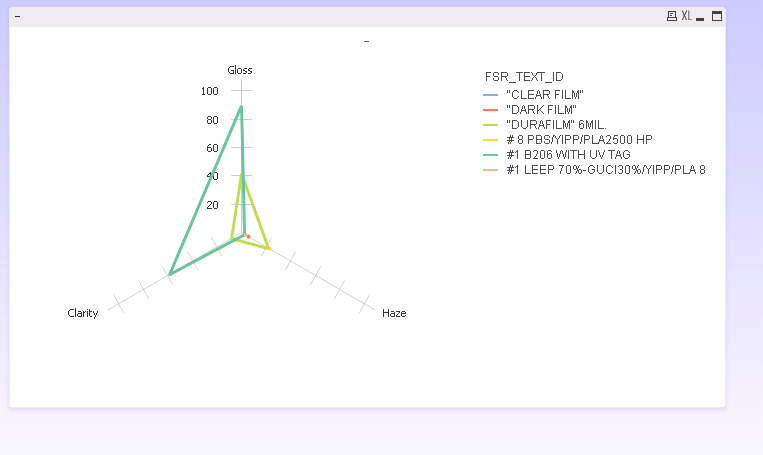

Thanks for your help. When I tried to implement I'm getting graph like this...But I need the triangle inside the triangle..can you please help me out

Thanks in advance

[JonnyPoole]

I do not understand this requirement:  " I need the triangle inside the triangle" . Can you elaborate  ?
