Line CHART

[Mahamed_Qlik]

Hello Guys,

How to move the position of the dimension name in line chart.

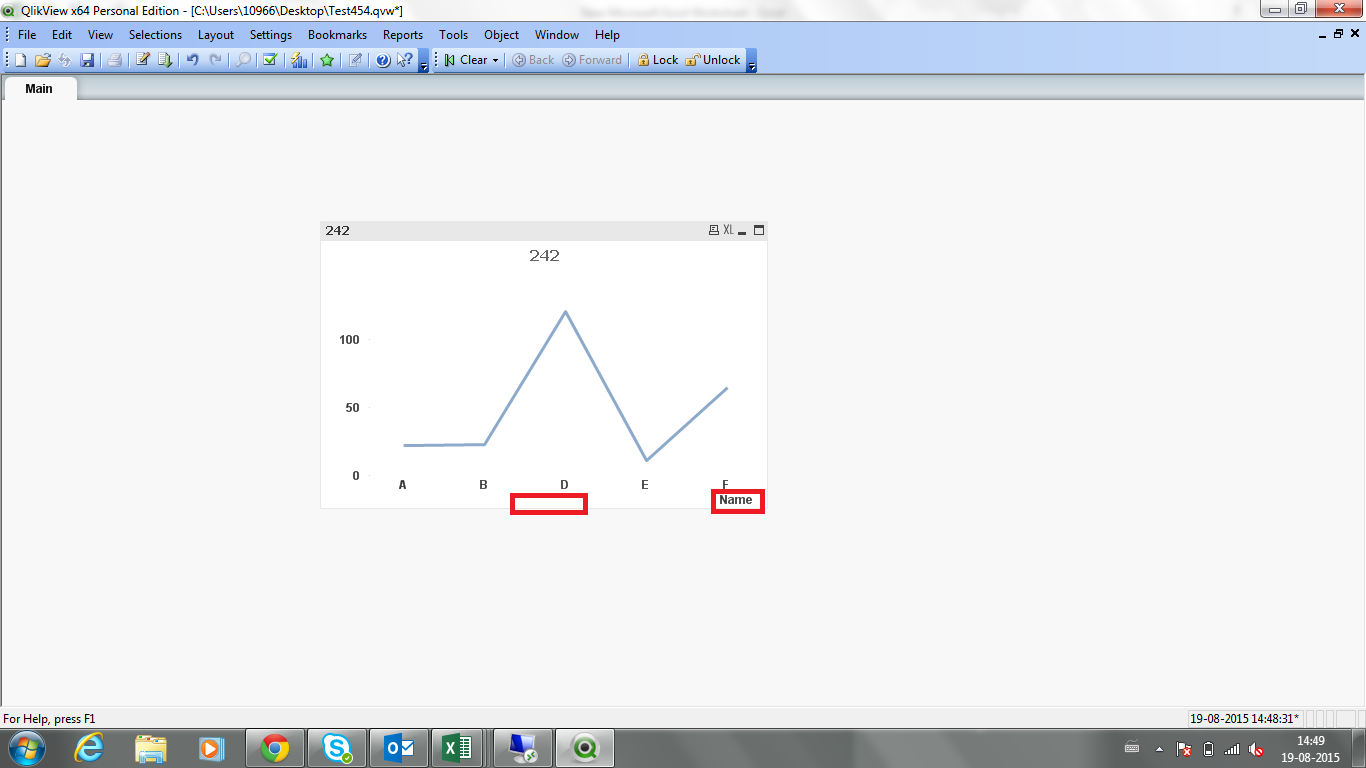

Below example I need my dimension name (Name) to be in center:

[sunny_talwar]

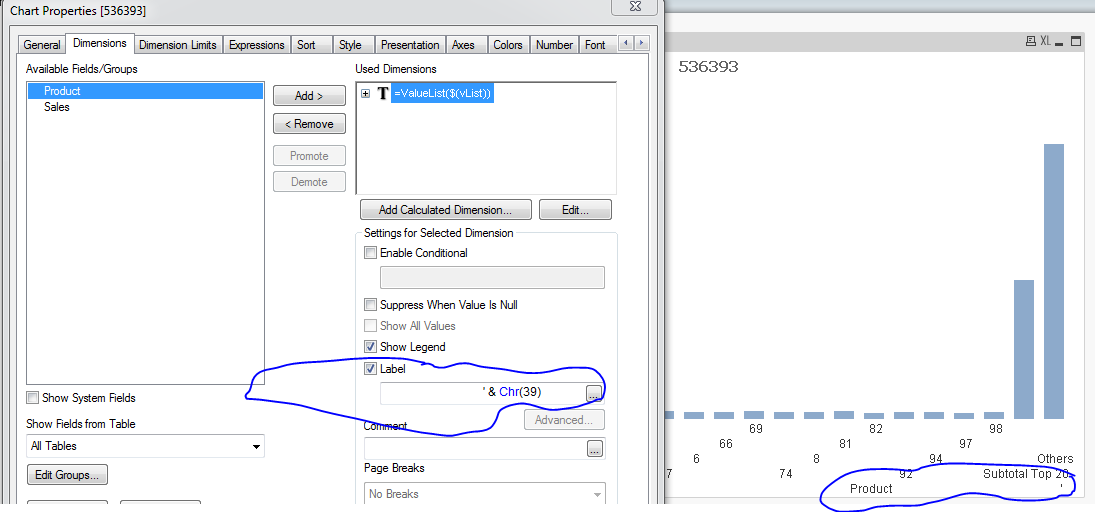

What if you add spaces in Dimension Label:

='DimensionName                                                 ' & Chr(39)

You will see a single quote at the end, but its kind of negligble

[sunny_talwar]

[gautik92]

There is no other way except addding Spaces in the Dimesion Label

[qlikmsg4u]

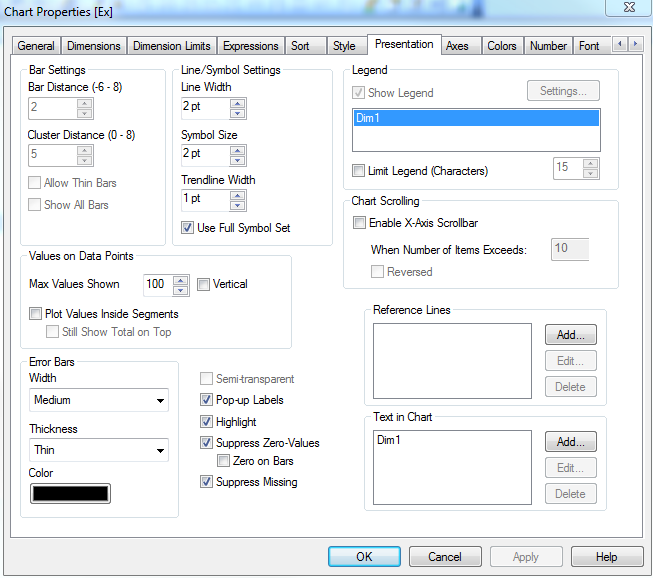

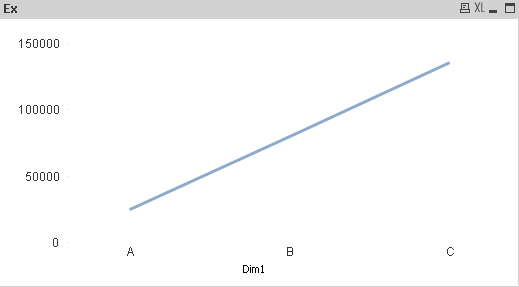

or may be like

Hide Dimension label and

Add text in chart

Presentation > Text in Chart

and place it where ever you want.

[Mahamed_Qlik]

Thank you . It works fine.

[#7]

1) Select the line chart

2) Hold CTRL + SHIFT

3) drag the text surrounded by a red border to move it anywhere you like

[qlikmsg4u]

If you are satisfied with the answers, please close the discussion so that others will find solutions/answers if they encounter the same situation.

Thanks.
