Missing Selections in Layout and Command Button

[Anonymous]

Hello!

Can someone tells me what's wrong with my Qlikview set up?    I can't find the search strings in my command button properties and the border style in the layout tab.  I have already encountered this problem before and I just changed the default styling mode to advanced and it worked but this one doesn't work.

Tks.

[vardhancse]

Changing the styling mode: advanced

will enable the border style in the layout tab

For Select exclude there will be no search string

[#3 · Accepted solution]

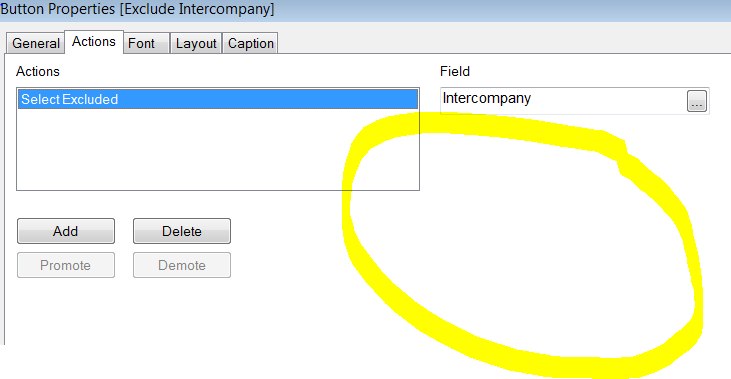

Based on your screenshots, you're using a Select Excluded action trigger, this doesn't have a "search string" parameter.

Try adding for example a "Select in field" action, you should get then the "search string".

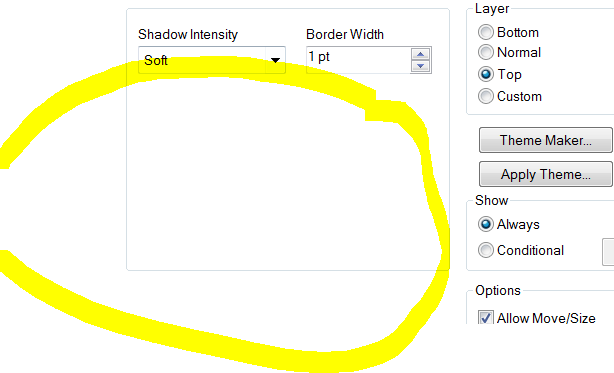

As to your missing options in the layout, make sure you're selecting the styling mode "advanced" from Settings > Document Properties > General => Styling Mode.

This setting will override the same one that exists under Settings > User Preferences > Design => Default Styling Mode.

Hope this helps.

[Anonymous]

Thank You so much,jp...It worked...I thought style mode in document properties would automatically update if you change ther user preference.  For the  command  button, I now used the "Select in Field " instead of the "Select Excluded".

Rgds
