Time interval graph restricted to time stamp not date

[#1]

Hi,

I am trying to produce a graph that shows when people entered and exited a hospital. I have a TimeStamp for both the entry and exit (EventStartTime and EventEndTime). I want to group the events into 15 minute time intervals. In the script I have achieved this by using:

Time( class( EventEndTime, .25/24))AS End15Interval,

Time( class( EventStartTime, .25/24))AS Start15Interval

These fields do appear to give me what I need. I have then created a line graph with the dimension of DataEventID (each DataEvent has an EventStartTime and an EventEndTime). I then have used the expression:

=COUNT(Start15Interval)

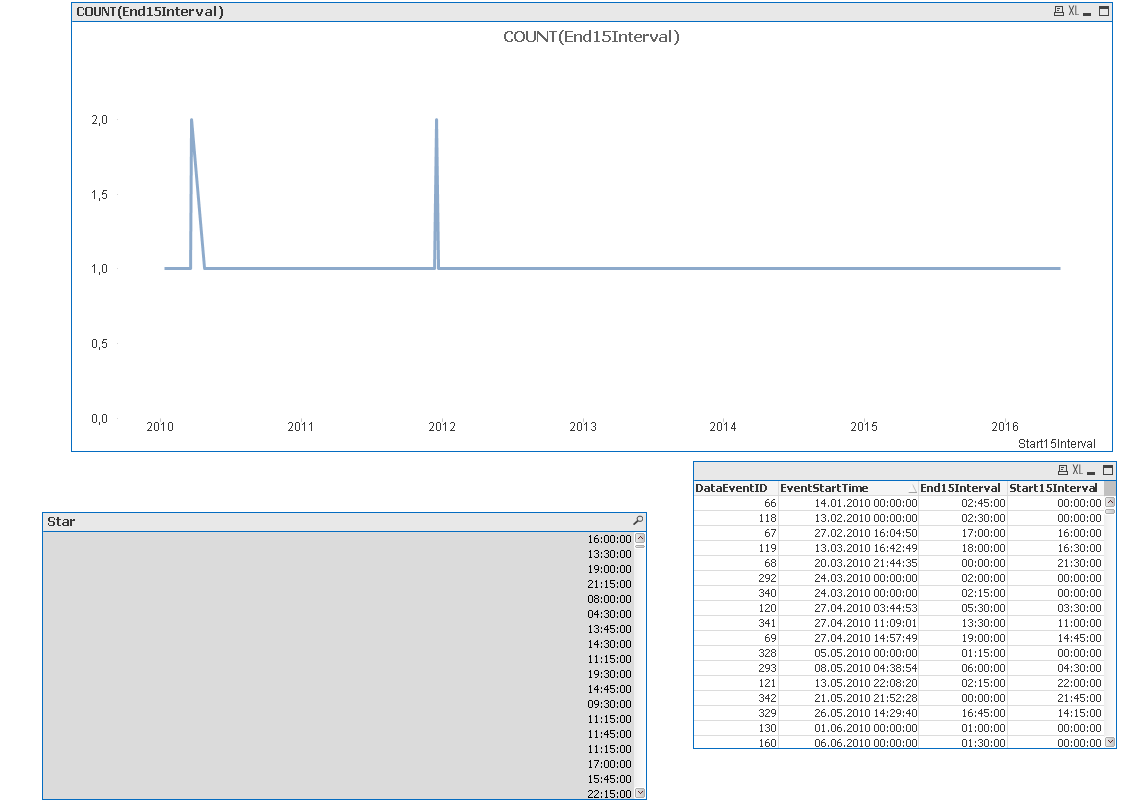

The graph comes out like this:

I was however expecting it to come out with all the values showing just the times and not considering the dates. Similarly I'm surprised that when I create a listbox for Start15Intervals I see lots of the same values appearing.

It feels as though the Start15Interval appears to be just a time value but might actually also include a date stamp which the graph must be picking up.

Any suggestion on how I can resolve this?

Thanks for your help it is greatly appreciated.

Dan

[jonathandienst]

Hi

You have not removed the date component of the data. Time() only reformats it to look like a time, but the underlying value is still a time/date value. Use Frac() to remove the date portion, for example:

Time(class(Frac(EventEndTime), .25/24)) AS End15Interval

HTH

Jonathan
