Using KPI

Hi All,

I am new to Qlik Sense and I want to try to use a KPI to Count the number of "NO" from the following table



PATIENT NAMECHART NOTE TYPESERVICE DATEPROVIDERSIGNEDSIGNED BYSIGNED ON
Patient7SOAP Note8/11/2017Doctor 1YesDoctor 18/11/2017
Patient11SOAP Note7/10/2017Doctor2YesDoctor27/11/2017
Patient13SOAP Note10/3/2017Doctor1YesDoctor110/3/2017
Patient15SOAP Note10/10/2017Doctor2NoDoctor2
Patient8SOAP Note1/17/2017Doctor 2YesDoctor 21/18/2017
Patient2SOAP Note2/16/2017Doctor3YesDoctor32/17/2017
Patient3SOAP Note3/16/2017Doctor3YesDoctor33/17/2017
Patient4SOAP Note7/27/2017Doctor3YesDoctor37/27/2017
Patient6SOAP Note5/8/2017Doctor3NoDoctor3
Patient5SOAP Note4/13/2017Doctor3NoDoctor3
Patient10SOAP Note4/19/2017Doctor3YesDoctor34/19/2017
Patient9SOAP Note5/24/2017Doctor3NoDoctor3
Patient1SOAP Note6/27/2017Doctor3YesDoctor36/27/2017

The KPI would have the total Soap Notes and the added dimension would show the # of No, Soap Notes that have not been completed.  Can someone help me what the function may be.

Thanks for all of your help in advance.

Desmond

3 Replies
devarasu07
Master II
Master II

Hi,

If you wish to calculate the SIGNED flag you can use below way

if(len([SIGNED ON])<=0,'NO','YES') as SIGNED_Flag

Try like this, using the Text object

= '# of No, Soap not completed' &Chr(10)& count({<SIGNED={'NO'}>}[PATIENT NAME])

='Total Soap Notes' & Chr(10)& Count(distinct [PATIENT NAME])

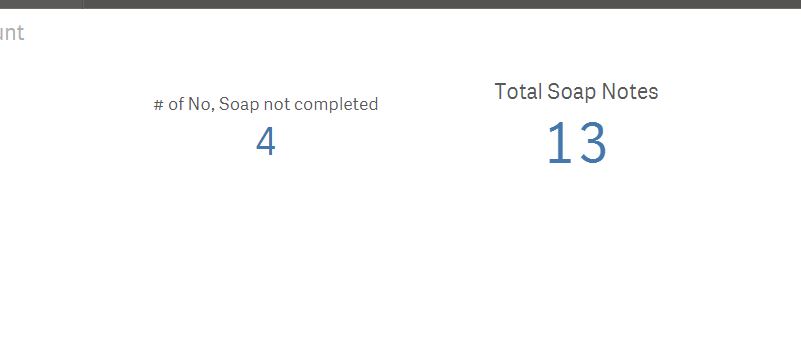

or use KPI object like below screen shot

'# of No, Soap not completed

=count({<SIGNED={'NO'}>}[PATIENT NAME])

Total Soap Notes

= Count(distinct [PATIENT NAME])


vikasdesai
Partner - Contributor III
Partner - Contributor III

Hello

To Count the number of "NO"

Use Following Expression as Measure in KPI

Count({$<SIGNED={'No'}>}SIGNED)


AND for Total Soap Notes

Count({$<CHART NOTE TYPE={'SOAP Note'}>}CHART NOTE TYPE)


Regards

Vikas

dezmundw15
Contributor III
Contributor III
Author

Thank You guys, both approaches worked.  I was really close with my script as compared with Vikas.  I am learning more everyday.  Are there some other guides I can use to get better at scripting that you all may have used?
