how to use button to swap different expression on a chart?

[jim_chan]

Hi guys,

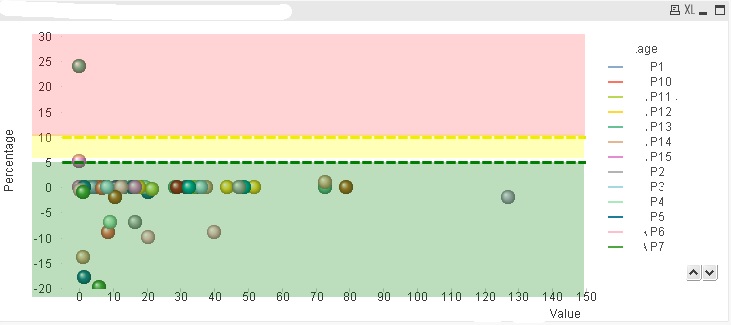

i have a problem here. Ok, i have created a scatter chart here.

Client request to use button to trigger different expression on the same chart...

for example: button1 for group A (p1-p5) button2 for group B(p10-p15)

2 same expression: expression1 = sum(value), expression 2 sum(percentage).

so when cllient click on group A button - it shows group p1-p5 only and the same expression.

How can i achieve something like this?  help help help!

Rgds,

Jim

[MK_QSL]

Create a Variable...vShow

Go to Expression Tab

Use 1st Expression

sum({<age = {'P1','P2','P3','P4','P5'}>}value)

Use Conditional Show

vShow = 1

Use 2nd Epxression

sum({<age = {'P10','P11','P12','P13','P14','P15'}>}value)

Use Conditional Show

vShow = 2

Now Create a Button

Go to Action Tab

Add -- External -- Set Variable

Variable

vShow

Value

=If(vShow = 1, 2, 1)

[jim_chan]

Thanks Manish! do i need to change the expression of the chart object? suppose, mine is a scatter chart.

[MK_QSL]

You need to show P1 to P5 for first click

and

P11 to P15 on 2nd click...

So obviously you need to change Expression accordingly...

There are other way also without changing the expression but it will require to change

first click Show All

2nd click P1 to P5

3rd click P10 to P11

Depends on how you want to show..
