labels truncated in chart

[olivierrobin]

hello

You will find a sample in the attached qvw.

The problem is :

I have a label which is the concatenation of two texts and I want i to be displayed  on the points of data. The problem is that this label may be truncated (see value for key b)/

as you can see, the chart is sized to the maximum.

I also tried :

create another column with value multiplied by a factor (eg: 1.5 , 2 , ....)

fix a max scale value in axis / scale

it seems to work but there is always a case where label is truncated.

I have the same problem with vertical bars where label is split on 2 lines.

Any ideas ?

[Frank_Hartmann]

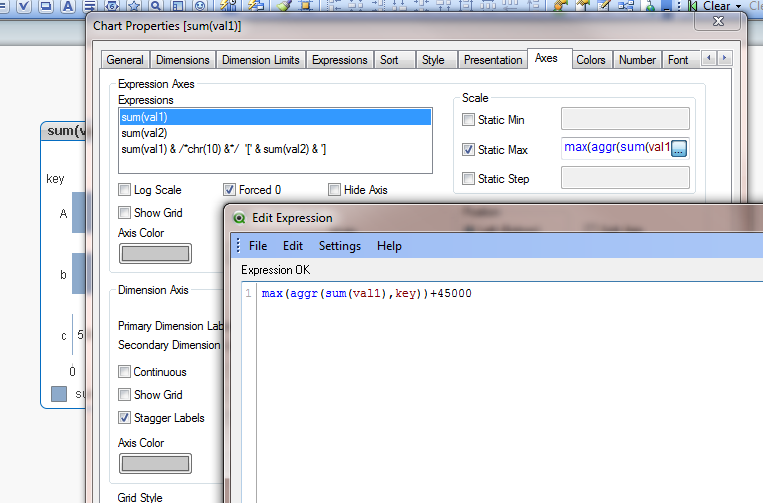

try like this:

[olivierrobin]

hello

as I said, I already tried it and it seems to work but there is always a value which make the label to be truncated

[jonathandienst]

No easy workaround other than reserving enough space. You could also use

Max(Aggr(Sum(val1),key)) * 1.3

Adjust the factor as required

[Frank_Hartmann]

and when you also take into regard the length of the visible text ?

static max formula for sum(val1) :

max(aggr(sum(val1),key)) * len(sum(val1)&sum(val1))
