too many lines in line chart

[Anonymous]

Hi All,

I have multiple drilldown dimensions and one expression in a line chart

At the lowest level of my drilldown i have (sometimes ) too many lines .

I would like to show only a max of 5 lines by creating a condition (for eg: worst performing sales people by brand / territory / time ).

[marcus_malinow]

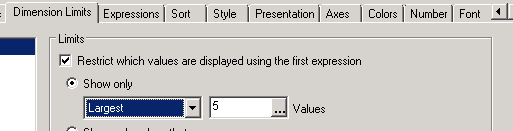

You can restrict the number of lines displayed by using the 'Dimension Limits' tab.

In it, check the 'restrict which values are displayed using the first expression' then select Largest/Smallest/First 5 values

[buzzy996]

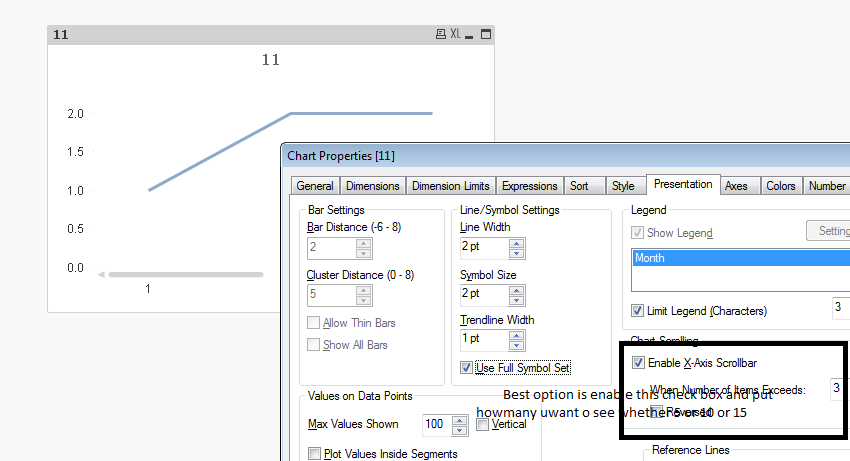

see attached

[Anonymous]

[buzzy996]

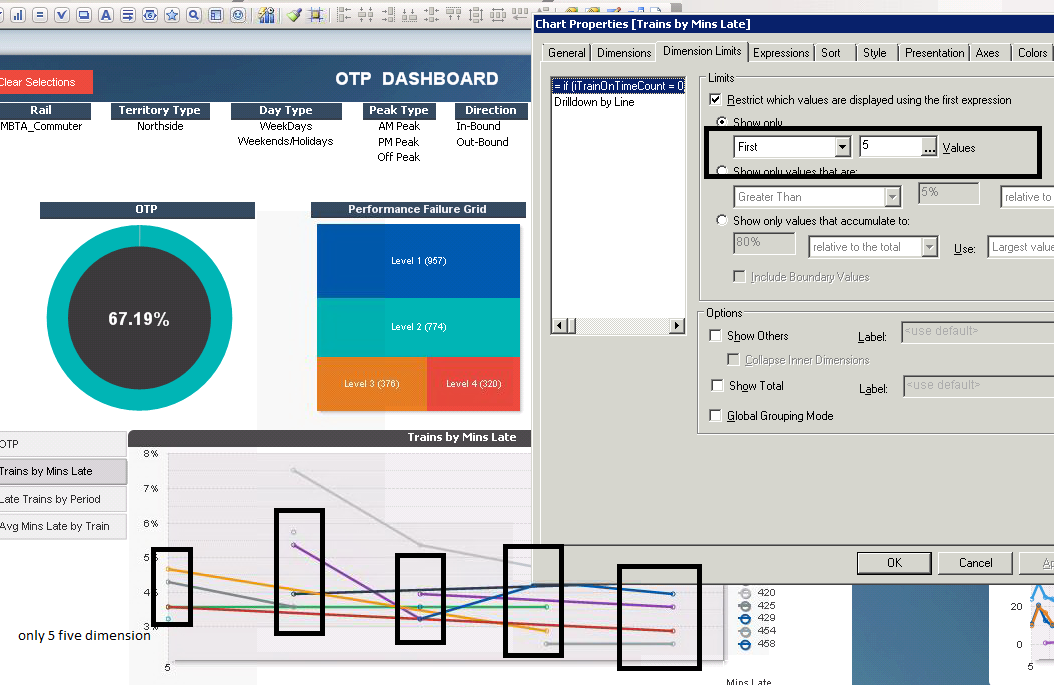

see this

[Anonymous]

Hi Shiva Reddy,

Not sure I am leading in a wrong direction, but, here is what I need to display:

Max 5 Trains only based on number of minutes late.

The legend also should only display a maximum of 5 trains.

--

Please check that, in you screenshot, there are more than 5 Trains being displayed.

[rwunderlich · Accepted solution]

On the "Drilldown by Line" Dimenssion Limit, check "Global Grouping Mode".

-Rob

[Anonymous]

Intended result need to look like this:

[rwunderlich]

It's hard to follow along with what you are showing as the demo qvw you uploaded does not include the TrainNumbers shown in your screenshot.

-Rob

[Anonymous]

Hi Rob,

I made great progress. Thank you

However, for charts with two Drilldown Groups,

"Global grouping Mode' is not working.

Any suggestion
