Static Min and Max

[#1]

Hi,

in my app, having 2 dimensions and 4 expressions.

Now i needs to check my 4 expressions values which is minimum and maximum. And should display the y-axis minimum +1 and maximum+1.

I tried below conditions for Static Min and Static Max, but it displays only min and max in y-axis.

Static Min :

if(min(Column(1))> Column(2)and Column(3) and Column(4),min(Column(1)),

if(min(Column(2))> Column(1)and Column(3) and Column(4),min(Column(2)),

if(min(Column(3))> Column(1)and Column(2) and Column(4),min(Column(3)),min(Column(4)))))

Static Max :

if(max(Column(1))> Column(2)and Column(3) and Column(4),max(Column(1)),

if(max(Column(2))> Column(1)and Column(3) and Column(4),max(Column(2)),

if(max(Column(3))> Column(1)and Column(2) and Column(4),max(Column(3)),max(Column(4)))))

Example for what i'm trying is :

1.) From all the expression min is 14.33 then y-axis should start from 13.33

2.) From all the expression max is 25.17 then y-axis should end at 26.17

Is this possible ?

Thanks in advance.

Regards,

venkat

[CELAMBARASAN]

Try using range functions

RangeMin(Expr1,Expr2,Expr3,Expr4)-1

RangeMax(Expr1,Expr2,Expr3,Expr4)+1

[#3]

Hi,

Thanks for reply.

I tried Range function, but it didn't helps me.

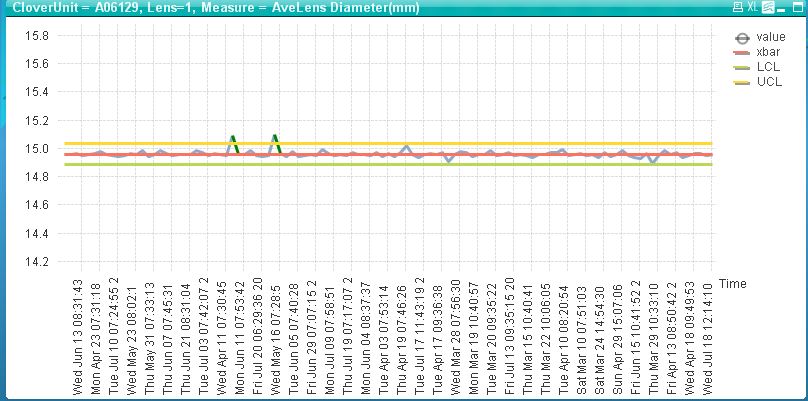

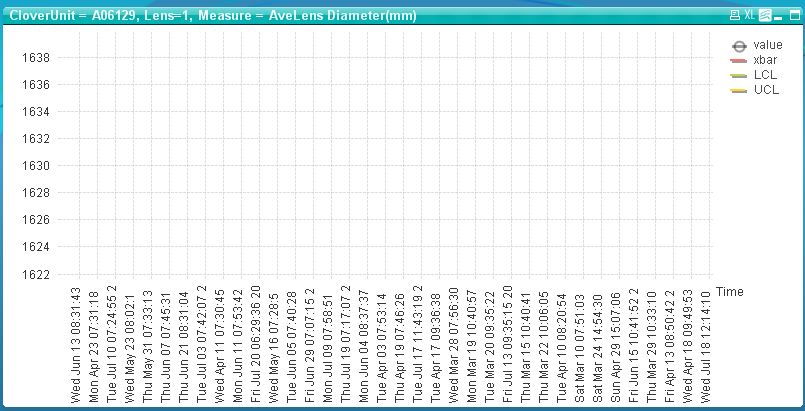

I'm attaching the 2 screenshots 1.) Without any Static Min and Max 2.) After applying Static Min and Max.

After applying below Stati Min and Max:

StaticMin:

RangeMin(Sum( {$<[Clover Unit]={'A06129'}, Lens#={'1'},measure={'Ave Lens Diameter (mm)'}>}value),

Sum( {$<[Clover Unit]={'A06129'}, Lens#={'1'},measure={'Ave Lens Diameter (mm)'}>}xbar),

Sum( {$<[Clover Unit]={'A06129'}, Lens#={'1'},measure={'Ave Lens Diameter (mm)'}>}LCL),

Sum( {$<[Clover Unit]={'A06129'}, Lens#={'1'},measure={'Ave Lens Diameter (mm)'}>}UCL))-1

StaticMax:

RangeMax(Sum( {$<[Clover Unit]={'A06129'}, Lens#={'1'},measure={'Ave Lens Diameter (mm)'}>}value),

Sum( {$<[Clover Unit]={'A06129'}, Lens#={'1'},measure={'Ave Lens Diameter (mm)'}>}xbar),

Sum( {$<[Clover Unit]={'A06129'}, Lens#={'1'},measure={'Ave Lens Diameter (mm)'}>}LCL),

Sum( {$<[Clover Unit]={'A06129'}, Lens#={'1'},measure={'Ave Lens Diameter (mm)'}>}UCL))+1

thanks in advance.

Regards,

Venkat

[CELAMBARASAN]

Is it was a percentage?or divided by something?

instead of adding 1 check with adding 0.01?

[ericcosmai]

Hi!

Could you send a datatable with values?

Regards.

[#6]

Hi,

i tried by adding 0.01 but no difference, it is not increasing the min and max scale.

Please find the attached sample app.

Thanks & Regards,

Satish.A

[#7]

hi,

Can anyone help on this. Its really urgent to complete.

Thanks in advance.

Regards,

Venkat

[swuehl]

Maybe like

=min(aggr(RangeMin(

Sum( {$<[Clover Unit]={'A06129'}, Lens#={'1'},measure={'Ave Lens Diameter (mm)'}>}value)

,Sum( {$<[Clover Unit]={'A06129'}, Lens#={'1'},measure={'Ave Lens Diameter (mm)'}>}xbar)

,Sum( {$<[Clover Unit]={'A06129'}, Lens#={'1'},measure={'Ave Lens Diameter (mm)'}>}LCL)

,Sum( {$<[Clover Unit]={'A06129'}, Lens#={'1'},measure={'Ave Lens Diameter (mm)'}>}UCL)

),[Time Data Recorded]))-1

for min axis scaling and

=

max(aggr(RangeMax(

Sum( {$<[Clover Unit]={'A06129'}, Lens#={'1'},measure={'Ave Lens Diameter (mm)'}>}value)

,Sum( {$<[Clover Unit]={'A06129'}, Lens#={'1'},measure={'Ave Lens Diameter (mm)'}>}xbar)

,Sum( {$<[Clover Unit]={'A06129'}, Lens#={'1'},measure={'Ave Lens Diameter (mm)'}>}LCL)

,Sum( {$<[Clover Unit]={'A06129'}, Lens#={'1'},measure={'Ave Lens Diameter (mm)'}>}UCL)

),[Time Data Recorded]))+1

for max axis scaling
