Linechart change colour

[#1]

Hi again,

I have now created a line chart and I want to use specific colours for the lines. I see it's possible to add colours, but how do I do it? I want one line to be green and another red for example? Where can I find the codes for colours and how do I add it in the fx?

Thanks

[Gysbert_Wassenaar]

As far as I know it's not yet possible to set the color for each individual measure.

[balexbyrd]

In the line chart, you must have a Dimension (cannot be a Master Item) in order to change the colors.

In the color property, select custom > by expression and adjust the below formula to work for your needs.

if([Customer]='Paracel',Green(),Red())

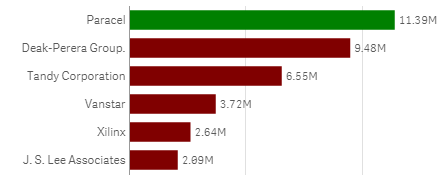

returns:

Please mark the reply as correct or helpful if it suits your needs

[neha_sri]

yes you can change the colour.

Change colour 1-6 and colour 7-12 as per your requirement.

attached is the qvw

[Gysbert_Wassenaar]

Qlik Sense, not QlikView

[Anonymous]

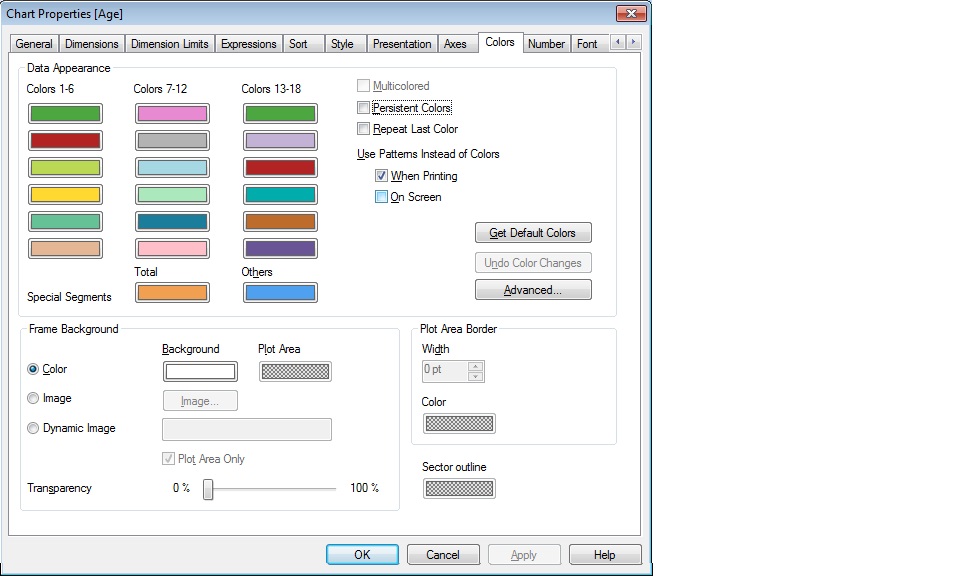

Yes. Its possible to change line color as per requirement in Qlikview 11. You need to select color tab & then in color tab select color as you required. In the below screen shot I have selected green color for first expression & red color for second expression.

[neha_sri]

sorry..my mistake..:)

[robert_mika]

QlikSense not QliVview...

[Anonymous]

sorry ...

[#10]

Thank you for your help. Plannig on learning Qlik View as well so good to know that it's possible there.
