Columns as Expressions, Rows as Dimension

[#1]

Hello

I have the following data set:

Project	Cost1	Cost2	Cost3
A	1	5	6
B	3	3	6
C	1	4	3
D	3	4	5
E	4	6	4

I want a line chart where the X-axis are Cost1, Cost2, Cost3, and the line connecting each Project's Cost is shown.

Any help would be appreciated.

[Gysbert_Wassenaar]

Since you're talking about a line chart it sounds like all you need to do is change the Orientation on the Style tab. If that's not the case I obviously don't understand what you want. Can you show what the result should look like? Also are cost1, cost2 and cost3 fields? If they are expressions can you post the expressions too.

[#3]

Thanks for your response.

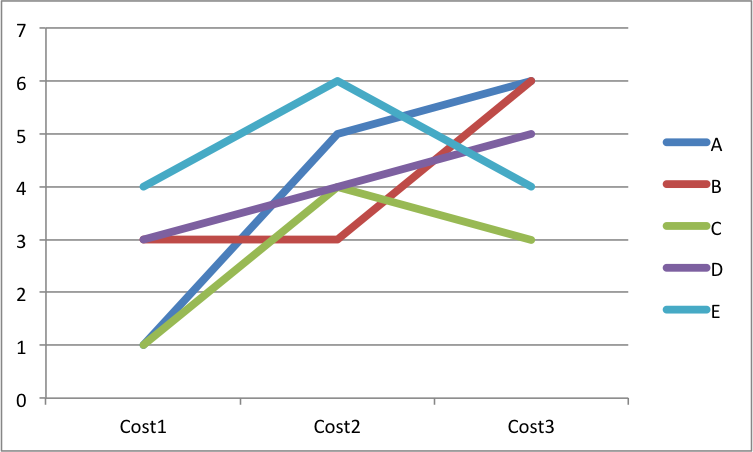

This is what I want:

Of course the actual data that I am working with is more complex. There are a larger number of Projects and Costs.

Edit: The above image I added was achieved with Excel by simply switching the Row and Column.

[Gysbert_Wassenaar · Accepted solution]

Ok, your data needs to be in the form

Project, Cost, Value

A, Cost1, 1

A, Cost2, 5

...etc

Then in your chart you add Cost as first dimension, Project as second dimension and sum(Value) as expression.

If your data is in the form you posted above then you first need to transform it in the script with the crosstable function

Data:

crosstable(Cost, Value,1)

load

Project, Cost1, Cost2, Cost3

from ...somewhere...;

[#5]

Thank you very much. It worked perfectly.
