Hi,
As a novice QV designer I am experimenting with some Olympics Games data to create a dashboard. Each table record is an individual medal winner and includes a Medal field (GOLD, SILVER or BRONZE) and a Ranking field (1, 2 or 3) which qualifies the medal type.
I want to display my data as a stacked bar chart showing the number of medals won by a selected country at each Olympic Games. The Y axis will show the number of medals won by that country. And the X axis will show the Olympic years. Each vertical bar will be split into Gold, Silver and Bronze portions (from top to bottom) and coloured appropriately.
I can create the chart ok but the portions of each bar are in the wrong order. If I sort alphabetically I get BRONZE, GOLD, SILVER. I've tried a few options but none seem to work. How can I use the Ranking field to determine the correct stacking sequence of GOLD, SILVER, BRONZE ?
Regards
MV
Hi Michael, I've uploaded the QV file as requested. MV
Hi Massimo,
I tried this but the colours don't match those in the Colors 1-6 of the Colors tab.
I've attached 3 screenshots as follows:
1. The chart object
2. The Sort tab entries for the GSB field (Medal Type)
3. The Colors tab entries for the chart
Hope this helps
is
=match(YourMedalTypeField, 'GOLD', 'SILVER', 'BRONZE')

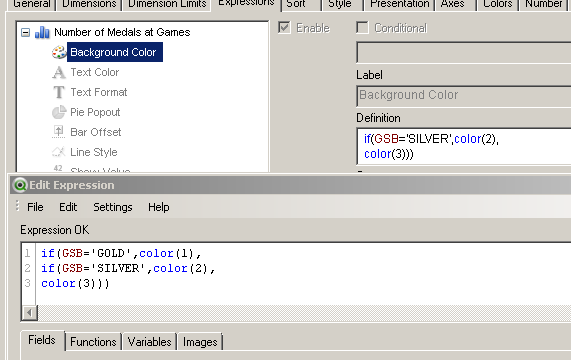

you can use if in expression background color or here
http://community.qlik.com/blogs/qlikviewdesignblog/2012/12/04/colors-in-charts#comment-13693
File has been uploaded for your attention.
Thanks

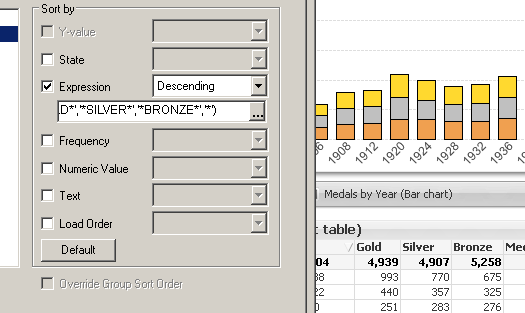

Use below expression for sorting GSB dimension
=if(wildmatch(GSB,'*GOLD*'),1,
if(Wildmatch(GSB,'*SILVER*'),2,
if(WildMatch(GSB,'*BRONZE*'),3)))
and make sorting order 'Descending' in sort tab of chart properties
Regads
Kiran
Fixing the script:
MedalTypeMap:
MAPPING LOAD * INLINE [
A, B
GOLD, 1
SILVER, 2
BRONZE, 3];
Medallists:
LOAD Year,
Season,
Sport,
Gender,
Event,
Athlete,
Sex,
Team,
Dual("GSB", applymap('MedalTypeMap',"GSB")) AS "GSB",
Rank,
Type,
Result,
Medal,
Record
FROM
Data\Medallists11.xlsm
(ooxml, embedded labels, table is Medallists);
Games:
LOAD Year,
Season,
City,
Country
FROM
Data\Medallists11.xlsm
(ooxml, embedded labels, table is Games);
Flags:
INFO LOAD Team,
Flag
FROM
Data\FlagsOECD.csv
(txt, codepage is 1252, embedded labels, delimiter is ',', msq);
Now it will be dual, that is sortable by number.
see image
or attachment
