How to Create different charts for different selection in a sheet?

[#1]

Hi ,

Is there any way of creating different charts for different selections in the same sheet of Qlikview document.

My requirement is to display relevant chart with respect to a particular selection hiding the other charts.

Thanks,

Vaneet

[Nicole-Smith]

It sounds like you want to look into Alternate States.

(The Product Grouping tab on the "What's New in QlikView11.qvw" that comes with the QV11 install should give you an example of this.)

[Anonymous]

You can do it using conditional show of the charts.  One condition for one chart, another condition for another chart.

[jpapador]

If you are using Qlikview 11, you want to use alternate states.  You can turn on alternate states in the document properties on the general tab.  Once enabled you can assign objects to different states on their individual general tabs in the object properties.

[rustyfishbones]

Hi,

These videos shows how to conditionally display charts

Qlikview Design Variable by RFB 86 - YouTube

Qlikview Design Tip by RFB 92 - YouTube

I hope they help

Regards

Al

[#6]

Not Exactly. My requirement is as below:

Suppose i have sales data with respect to regions (A,B,C,D....) now if i choose region A my graph should be a Bar chart,if i choose region B my graph should be a Line graph etc. means for every selection there has to be a different representation of data.

Thanks for the help.

[jpapador]

Ah you could make a graph with 4 separate expressions.  Then in the conditional bar for the expression do:

GetFieldSelections(region) ='A' For the first one

GetFieldSelections(region) ='B' for the second.... Etc.  Make sure you make it a combo chart then you can select the different representations for each expression.

That way the expression will only show when its specific region is selected

[rustyfishbones]

So you can create your charts and then add the following

IF(Region = 'A',1,0) or IF(Region = 'B',1,0) and so on for each region

Add the above IF statement to the Show Conditional in the layout tab for each chart.

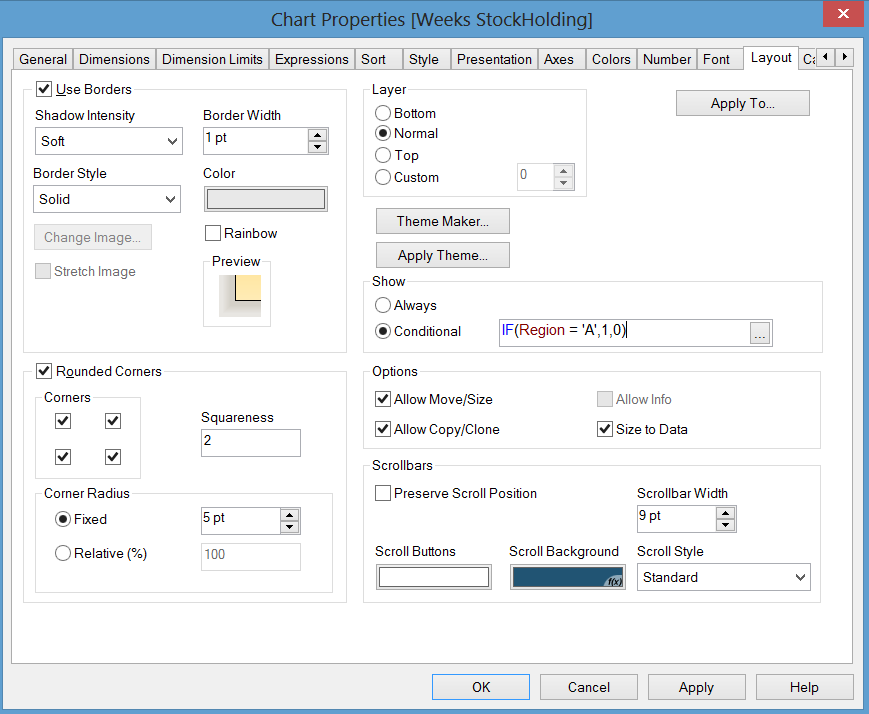

Here is an attached image of where to change this

[#9]

Ok Thanks but what if i do not want to create combo charts and want to display completely new charts as per the regions.

[rustyfishbones]

That where you would use my approach above
