Labels in gauge chart

[#1]

Hi,

I have a gauge chart with the Min, Q1, Median, Q3 and Max segments.

However the graphic scale doesn't match with this statistics. It just divide the bar in 4 equal segments.

To ilustrate this problem please find below the attached example.

How can I make the scale match to the defined segments?

Many thanks

[johnw]

Well, I THOUGHT reference lines would work, but they don't.  You can add reference lines that match up to your segment boundaries, but when I checkmark "Show Label in Chart", it does nothing.  Bug?  Working as designed?  I can add the label as text in chart and stick it where it belongs, but then it won't be positioned at the right spot if your data changes.

[#3]

John, thanks for your time.

I found that same problem with the reference lines...

About the text labels they're not an option, because data is always updating...

Regards,

[markdiorio_kpmg]

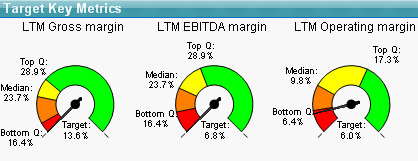

I know this is an old post, but I just solved using a macro with logarithmic functions to determine x, y coordinates of labels.  You need fixed object ids for gauges and text objects for labels, and variables to for the quartile values in each gauge..

sub SetGaugePointPositions

GaugeObjectsList = "[TSGrossMargin],[TSEBITDAMargin],[TSOperatingMargin]"

GaugeObjects = Split(GaugeObjectsList, ",")

GaugeVarsList = "GrossMargin,EBITDAMargin,OperatingMargin"

GaugeVars  = Split(GaugeVarsList, ",")

PointsMetricsList = "LQ,Median,UQ"

PointMetrics  = Split(PointsMetricsList, ",")

for ii=LBound(GaugeObjects) to UBound(GaugeObjects)

  set  MyGauge = ActiveDocument.GetSheetObject(GaugeObjects(ii))

  set MyGaugePos = MyGauge.GetRect

  GaugeLeft=MyGaugePos.Left

  GaugeTop=MyGaugePos.Top

  GaugeWidth=MyGaugePos.Width

  GaugeHeight=MyGaugePos.Height

  ' figure center

  MyCenterX=GaugeLeft+(.44*GaugeWidth)

  MyCenterY=GaugeTop+(.44*GaugeHeight)

  'figure radius,circumference

  MyRadius=.45*GaugeWidth

  sCircumference=ActiveDocument.EvaluateEx("=2*pi()*"&MyRadius).Text

  sMin=ActiveDocument.EvaluateEx("=$(v"&GaugeVars(ii)&"Min)").Text

  sMax=ActiveDocument.EvaluateEx("=$(v"&GaugeVars(ii)&"Max)").Text

  for jj=LBound(PointMetrics) to UBound(PointMetrics)

   sMetricValue=ActiveDocument.EvaluateEx("=$(v"&GaugeVars(ii)&PointMetrics(jj)&")").Text

   'figure length of segment based on percent of circumference..

   sChordLength=ActiveDocument.EvaluateEx("((("&sMetricValue&"-"&sMin&")/(1.4*("&sMax&"-"&sMin&"))*"&sCircumference&")" ).text

   'figure angles in radians

   sAngle=ActiveDocument.EvaluateEx("((145+(("&sChordLength&"/"&sCircumference&")*360))*(pi()/180))").text

   'calculate x,y coordinates of lq, median, uq points

   sXPos=cint(ActiveDocument.EvaluateEx("num(("&cstr(MyRadius)&"*cos("&sAngle&"))+"&MyCenterX&",'###')").text)

   sYPos=cint(ActiveDocument.EvaluateEx("num(("&cstr(MyRadius)&"*sin("&sAngle&"))+"&MyCenterY&",'###')").text)

   'position lq, median, uq labels

   set MetricLabelObj = ActiveDocument.GetSheetObject("TG"&GaugeVars(ii)&PointMetrics(jj)&"Label")

   MetricLabelObjPos = MetricLabelObj.GetRect

   MetricLabelObjPos.Left=cint(sXPos)

   MetricLabelObjPos.Top=cint(sYPos)

   MetricLabelObj.SetRect MetricLabelObjPos

next

next

end sub

[rasvalera]

You’re awesome, thx a lot
