Make Gauge use part of data and make gauge selectable

I think I placed my question in the wrong section and I couldn't get it to move here. Excuse me for double post, but here is my question again:

Hey Guys,

I'm a beginner at Qlikview and I couldn't figure this out.

I have 2 tables like this:

Danger table:

dangerId          sourceId          dangerLevel

A015               source01          0.4

A016               source01          0.3

A017               source02          0.4

A018               source02          0.2

A019               source03          0.8

A020               source03          0.5

Source table

sourceId           sourceName

source01          exampleName1

source02          exampleName2

source03          exampleName3

What is want is three gauges, showing the average danger level per source. And when I click a gauge, a table shows which dangers correspond to that source.

I am importing a database from SQL, I could alter the database if that would be better to solve this problem.

Thanks in advance,

Sijmen

1 Solution

Accepted Solutions
trappersw
Partner - Creator
Partner - Creator

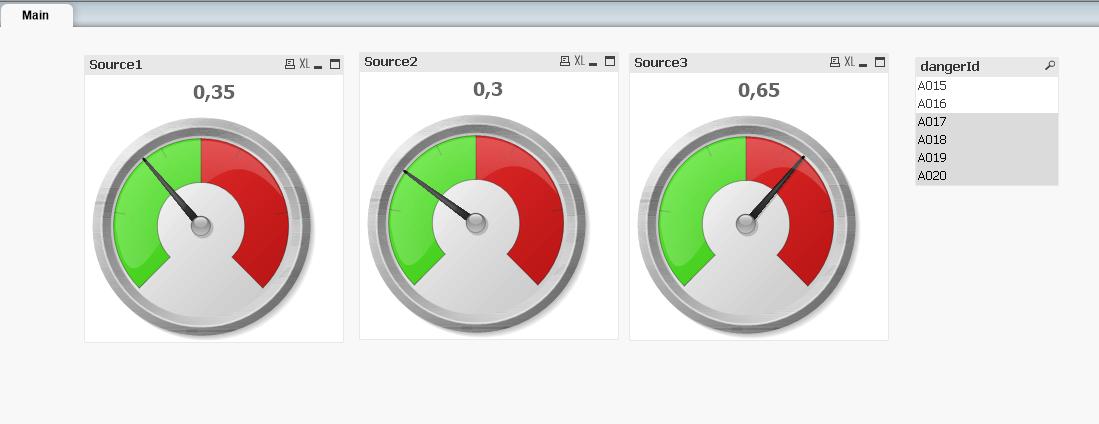

I've uploaded a .qvw with the solution to your answer: http://community.qlik.com/docs/DOC-7287

To show the average dangerlevel in the gauge you can use the following expression with set analysis, respectively for source01, source02 and source03: =avg({<sourceId={'source01'}>}dangerLevel)


best regards, wouter

View solution in original post

7 Replies
Gysbert_Wassenaar

Gauges are not clickable. However you can put a transparent text box on top of it and assign an action to that text box. For example a Select in Field action to select the sourceid corresponding with the underlying gauge.


talk is cheap, supply exceeds demand
Not applicable
Author

Ok, thank you, I will try that.

Then for the other question, how do I make a gauge show only the average value of dangerLevel of a certain source?

trappersw
Partner - Creator
Partner - Creator

I've uploaded a .qvw with the solution to your answer: http://community.qlik.com/docs/DOC-7287

To show the average dangerlevel in the gauge you can use the following expression with set analysis, respectively for source01, source02 and source03: =avg({<sourceId={'source01'}>}dangerLevel)


best regards, wouter

Not applicable
Author

I understand the example, but I still didn't get it to work in my actual app.

I use a SQL database which I import into qlikview.

Does the following statement in your load script really matter:

(ooxml, embedded labels, table is Danger);

As I could not use that with my SQL statement.

Gysbert_Wassenaar

(ooxml, embedded labels, table is Danger) is a filter that tells the load statement what kind of source file it's dealing with. ooxml means an .xlsx excel file. Embedded labels means to use the column names in the excel table as field names. Danger is the sheet name from the excel file that should be loaded.

For getting data from an SQL database you first open a connection to the database using the CONNECT statement. You then use a SELECT statement to get the data from the database. Optionally you can use a preceding LOAD statement to further process the data you retrieve from the database.


talk is cheap, supply exceeds demand
Not applicable
Author

I imported the database earlier, that was not a problem.

But when I change this: =avg({<sourceId={'source01'}>}dangerLevel)

to this: =avg({<TerminalId={'769DC483-C9C5-41A1-83A1-9EDQ00FEF087'}>}DangerLevel)

It does not show anything, giving 'No data to display' in the gauge object.

This is my import statement:

Dangers:

SQL SELECT DangerId,

    DangerLevel,

    TerminalId

FROM database.Dangers;

The import is succesful.

EDIT:

Somehow the Id's get between brackets when imported.

The following statement worked:

=avg({<TerminalId={'{769DC483-C9C5-41A1-83A1-9EDQ00FEF087}'}>}DangerLevel)

Gysbert_Wassenaar

Without looking at the actual data I cannot say why you get that message.


talk is cheap, supply exceeds demand
