Pie Chart within a Pie Chart with 2 Measures and 2 Dimensions

[#1]

Hi,

I am trying to generate a Pie chart within another Pie Chart.

For example: i have the data as below

PRIMARY	SECONDARY	Primary Percentage	Secondary Percent
A	Apple	9	100
B	Samsung	37	25
B	Nokia	37	50
B	Blackberry	37	25
C	Samsung	7	38
C	Motorola	7	62
D	LG	3	100
E	Sony	29	44
E	LG	29	56

I want to display a Drill down Pie chart, Primarily showing the Primary details - > Percentage

Later, on click of any Primary slice ( C ), i want to show the secondary details (Samsung,Motorola -> with Secondary Percentage) for that selected Primary slice.

I am trying to implement this, but am facing issues.

Can anyone please help me on this.

Thanks in Advance.

Best,

Santosh Kumari

[#2]

PRIMARY	SECONDARY	Primary Percentage	Secondary Percent
A	Apple	9	100
B	Samsung	37	25
B	Nokia	37	50
B	Blackberry	37	25
C	Samsung	7	38
C	Motorola	7	62
D	LG	3	100
E	Sony	29	44
E	LG	29	56

[#3]

Hello Santosh,

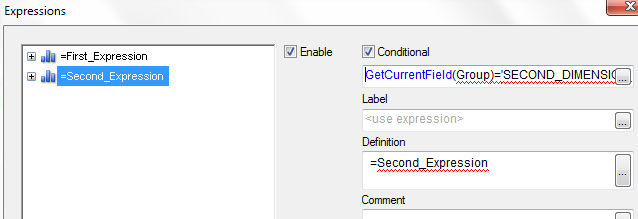

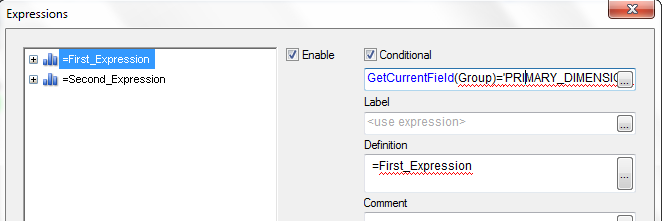

You need to use the conditionnal expression and the function GetCurrentField() in order to know what is the current field selected in the group.

Amand Dupretz

[Gysbert_Wassenaar · Accepted solution]

Create a drill down group and add the fields PRIMARY and SECONDARY to the group. Use the group as dimension in your pie chart. Use this expression if(GetCurrentField(G1)='PRIMARY', [Primary Percentage],[Secondary Percent]). Change G1 to the name of your group. See attached example.

[#5]

This is very much helpful Wassenaar.

Thank you for posting the sample.

Best Regards,

Sai Krishna
