Pivot Table Colouring

[#1]

Hi, I am fairly new to Qlikview.

I have made a pivot table that has three columns of interest and a fourth which displays the total numerical count.

I am trying to figure out how I can colour the background of each of the four columns separately. So it would be the full column not just the column name.

any idea?

[MK9885]

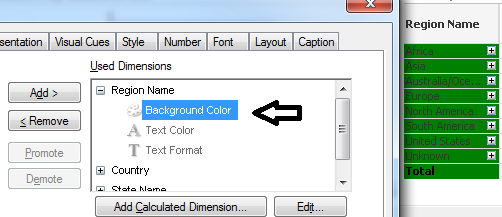

Drill down (click +) for the dimensions or measures you want to define colors and select 'Background Color'> Edit> give your color expression.

You can also change Text color in same way if your background color is mixing with text color.

Thanks.

[jyothish8807]

Hi TP,

You can give color from expression tab:

Click on + sign on the expression, then you will get background color option. Over there you can set the color you want.

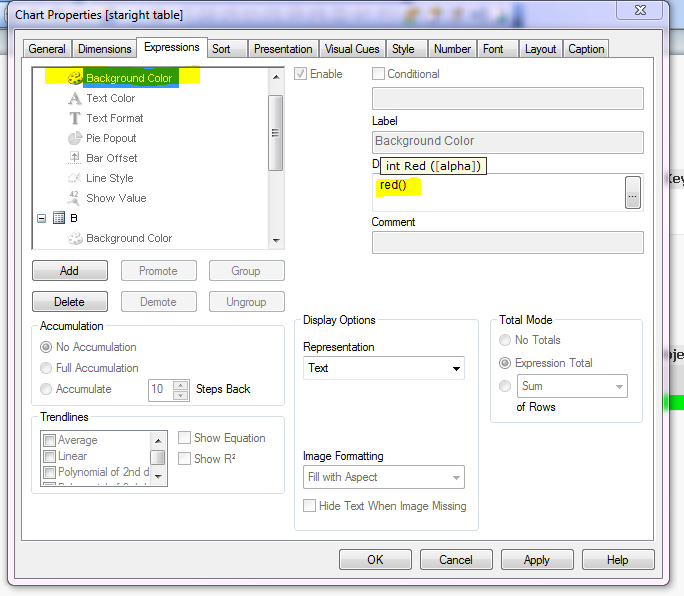

Attached below a screenshot for your reference.

[#4]

Thanks it worked.

Q1) I am also trying to get the column name to have the same background colour as the rest of the column. I know you can use ctrl+G to get into grid view and select specific columns.

However, when I colour on the dimensions it assigns the same colour to the rest which is not what I want to do.

Q2) Using a bar chart, I have a variable called 'FLAG'  and I am summing up the different types of values within  flag ('MIXED', 'NONMIXED' , 'UNKNOWN')

How can I assign each of these values a different colour of my picking? This is not based on values but just on the name of the each the flag values.

Thanks for your help.
