Previous and Next button for 2 bar charts

[jim_chan]

Hi guys,

just wan to know whether it is possible or not.

I have 2 bar charts to show.. side by side. i cant use the srcollling and limit to certain value shown, because if i do so, i have to scroll the left barr then scroll th right bar as well.

i am thinking, can i create Next or Previous button , and set it to show 5 data each time, previous or next. but when i click on the button, both bar charts to should be affected as well.

anyone there???

Rgds

Jim

[shraddha_g]

use same button variable in both charts

[lakshmikandh]

Hi, you can sort it by measure expression and set it to show top 10 fixed number and check option to show others

When you click on others then it will show next top 10 , etc .

[jim_chan]

No.. point here is. if by doing so, 1st - of course it will show top 10, but.. when i want to look at the next 10, i will have to scroll bar chart 1 , adn then scroll bar chart 2.

client is looking for a button, where when click on Next, both chart will scroll to the Next 10.

[jim_chan]

but how to write that variable for that button? if i want the next button to show next 5.

[johnw]

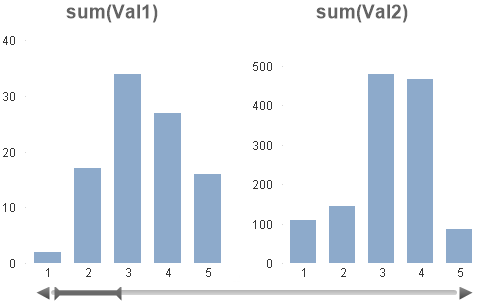

This isn't strictly what you asked for, but I feel meets the same sort of requirement. It uses a slider on the dimension with a fixed range. So it's making actual selections rather than scrolling through the selections. But if you really don't want it making selections, but only scrolling what was selected, I'm sure that's doable too. I'm thinking about how I might approach it.

[johnw]

Here's a possible solution that looks virtually the same as the previous, but doesn't change your actual selections. It shows 5 at a time of whatever you've actually selected.

[jim_chan]

Hi John,

Ok. i will use the slider. i want to use the field for example "Country" in my slider.

but in order for it to work, do i need to change the "country" to number format??? I dont know how.

the DIM that you showed was in number format.

Rgds

Jim

[johnw · Accepted solution]

For the expression I used, yes, but the idea can be extended. There's probably a simpler approach, but...

Data:
LOAD
chr(ord('A')-1+ceil(rand()*25)) as Dim
,ceil(rand()*10) as Val1
,ceil(rand()*100) as Val2
AUTOGENERATE 100
;
Show:
LOAD recno() as Rank
AUTOGENERATE fieldvaluecount('Dim')
;

Use Rank as the slider. Use this for your charts' dimension:

=aggr(if(1 + count(total distinct Dim) - rank(Dim)<=max(Rank) and 1 + count(total distinct Dim) - rank(Dim)>=min(Rank),Dim),Dim)

[jim_chan]

if i already have a field "Country" in my data loading.

load

Country,

recno() as Rank

Is it like this will do??

Rgds

Jim
