randomness to color assignment in charts with field of many values?

Hi All,

I have some fields with many possible values and am noticing in a 100% stacked bar chart, that often the same color is repeated twice in a row... for fields with many possible values in this type of chart, does the designer have any more control over this happening? Currently, I am using the 18 colors on the colors tab with persistent colors checked. Due to the # of values in the field, I do not want to assign colors on the Expression.

Thanks!

Kristina

3 Replies
swuehl
MVP
MVP

Maybe have a look into

Colors in charts

swuehl
MVP
MVP

Another option might be using a color expression like ColorMix1 and a expression that maps your dimension to a range between 0 and 1:

=ColorMix1(

FieldIndex('YourDimensionField',YourDimensionField) / FieldValueCount('YourDimensionField'),

Red(),

Blue()

)

Adjust the base colors to get a better color range.

MarcoWedel

Hi,

I guess the reason for the default colour palette being restricted to 18 colours is that using more colours would make your chart difficult to read. So the best solution IMO would be a drill down group as second dimension:

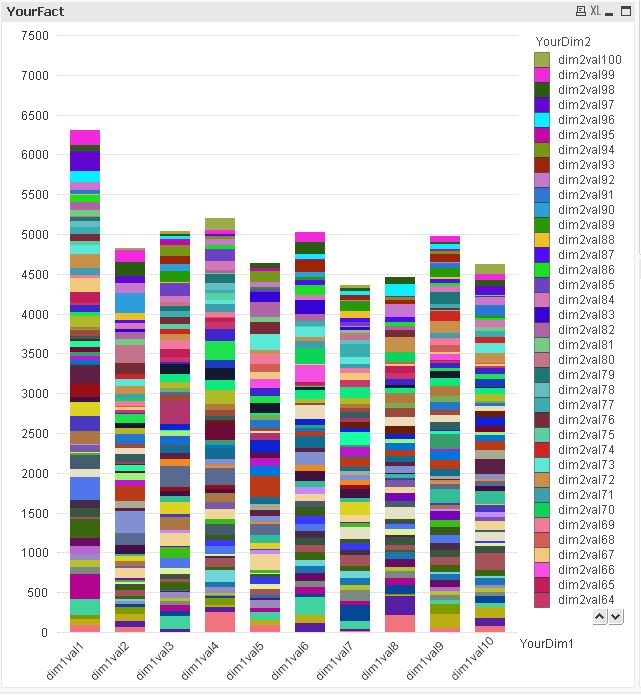

A (hard to read) solution using precalculated distinct colours however could be:




table1:

LOAD *,

    'group'&(Div(Mid(YourDim2,8)-1,10)+1) as YourDim2Group;

LOAD RecNo() as ID,

    'dim1val'&Ceil(Rand()*10) as YourDim1,

    'dim2val'&Ceil(Rand()*100) as YourDim2,

    Ceil(Rand()*100) as YourFact

AutoGenerate 1000;

tabTemp:

LOAD Distinct

    YourDim2

Resident table1;

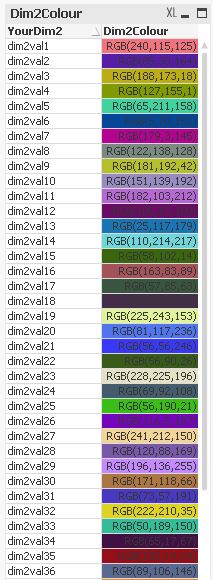

tabColours:

LOAD YourDim2,

    RGB(Rand()*256,Rand()*256,Rand()*256) as Dim2Colour

Resident tabTemp;

DROP Table tabTemp;

hope this helps

regards

Marco
