Add "Columns" Component in Data Property
Hi, I'm trying to implement the Data Property with the "Columns" Component that contains measures and dimensions.
Like what is in this photo:
But I could only figure out how to visualize the dropdown button without measures and dimensions because this part is not documented.

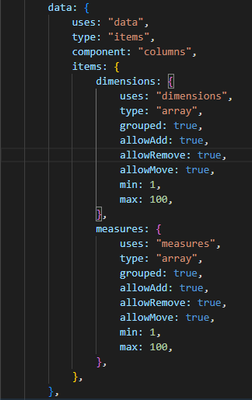

This is the code I arrived at:
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Hi @Nastiapom , are you trying to have this box that show you if you want to add a column as dimension or measure?
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Hi @alex_colombo ! Thank you for the replay.

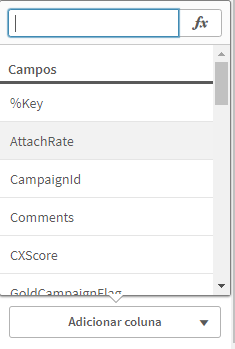

I can dislpay the box and the options like in this capture:
But when I click in any field, nothing happens.
My problem is that I can't visualize the data (list of fields after selection).
Like here:
I only have the button without fileds.
Thank you
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Did anyone found the answer for this scenario?
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Nope.
I'll just say I've seen some variation of this question asked multiple times here over the last few years and I dont think anyone has found an answer.
The "columns" property panel component doesn't seem to be documented anywhere.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Actually I found the correct way to add it but now Im getting new kind of issue while using it.
Please check Dimensions & Measures as columns in Qlik Sense pro... - Qlik Community - 2021036
Thanks
Manoj Prabu
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
I think I have a working sample:
define( [ "qlik"],
function ( qlik) {
const indexAdded = function(e, t) {
let n;
for (n = 0; n < e.length; ++n)
e[n] >= 0 && e[n] >= t && ++e[n];
e.push(t)
};
const indexRemoved = function(e, t) {
let n, i = 0;
for (n = 0; n < e.length; ++n)
e[n] > t ? --e[n] : e[n] === t && (i = n);
return e.splice(i, 1),
i
};
return {
initialProperties:{
qHyperCubeDef:{
qDimensions: [],
qMeasures: [],
qMode: "S",
columnWidths:[],
columnOrder: []
}
},
definition:{
type: "items",
component: "accordion",
items: {
data:{
type: "items",
component: "columns",
translation: "Common.Data",
sortIndexRef: "qHyperCubeDef.qColumnOrder",
allowMove: true,
allowAdd: true,
addTranslation: "Common.Columns",
items: {
dimensions: {
uses:"dimensions",
min:1,
max:5,
add(e, t, o) {
console.log("add dimension");
const n = o.hcProperties.qColumnOrder
, i = o.hcProperties.columnOrder
, l = o.hcProperties.columnWidths
, r = o.getDimensions().length - 1;
return indexAdded(n, r),
indexAdded(i, r),
l.splice(r, 0, -1),
e
},
remove(e, t, o, n) {
const i = o.hcProperties.qColumnOrder
, l = o.hcProperties.columnOrder
, r = o.hcProperties.columnWidths;
indexRemoved(i, n),
indexRemoved(l, n),
r.splice(i[n], 1)
}
},
measures: {
uses:"measures",
min:1,
max:5,
add(e, t, o) {
console.log("add measure");
const n = o.hcProperties.qColumnOrder
, i = o.hcProperties.columnOrder
, l = o.hcProperties.columnWidths
, r = o.getDimensions().length + o.getMeasures().length - 1;
indexAdded(n, r),
indexAdded(i, r),
l.splice(n[r], 0, -1)
},
remove(e, t, o, n) {
const i = o.hcProperties.qColumnOrder
, l = o.hcProperties.columnOrder
, r = o.hcProperties.columnWidths
, s = (o.hcProperties.qDimensions ? o.hcProperties.qDimensions.length : 0) + n;
indexRemoved(i, s),
indexRemoved(l, s),
r.splice(s, 1)
}
}
}
}
}
},
support : {
snapshot: true,
export: true,
exportData : false
},
paint: function ($element,layout) {
//add your rendering code here
$element.html( "Hello World" );
//needed for export
return qlik.Promise.resolve();
}
};
});
