Description

• Named log4j2.xml
• Located in DataPrepInstallationForlder\dataprep\config
• Log level can be changed to debug for example

<!-- Application log -->
     <root level="info" includeLocation="true">
         <appender-ref ref="logFile"/>

Overview

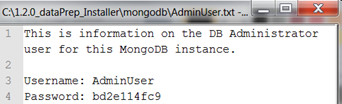

The AdminUser.txt file holds admin user credentials. It is located in the dataPrep_Installer\mongodb folder, and contains the default login and password of the admin user created by the DataPrep Installer.

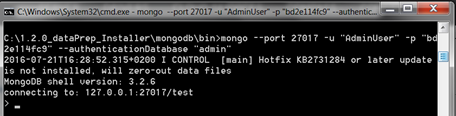

Those credentials can be used to start the Mongodb prompt.

Introduction

Talend Data Preparation lets you make a direct connection to various types of databases. You can use this direct connection as a source to create new datasets. This article explains the procedure to add a new database type to Talend Data Preparation to connect to Hive in Azure HDInsight.

HDInsight is a Hadoop service offering hosted in Azure that enables clusters of managed Hadoop instances. HDInsight deploys and provisions Apache Hadoop clusters in the cloud, providing a software framework designed to manage, analyze, and report on Big Data with high reliability and availability. HDInsight uses the Hortonworks Data Platform (HDP) Hadoop distribution.

Environment

• Talend Data Preparation 7.1.1
• HDInsight cluster
• The steps in this article are done using a Windows environment, but the process of setting up a new database type is the same on Linux machines

Prerequisites

• An Azure account with permissions for an HDInsight cluster and Hive tables
• An existing Hive table

Procedure

1. Download the following JAR files:

   • hive_jdbc-*.*
   • hive-services-*.*
   • hive-metastore-*.jar
   • hive-common-*.jar
   • hive-cli-*.jar
   • hive-exec-*.jar
   • libfb303-*.jar
   • libthrift-*.jar



2. Create a folder named jdbc-drivers in components_catalog_path/.m2/





3. Copy the JAR files to this folder:





4. Update the file located at components_catalog_path/config/jdbc_config.json. For this article, the jdbc_config.json file is located as shown in the image below:







5. Edit the jdbc_config.json file as shown below:

   • id: The value to be displayed on the database drop-down menu in Data Preparation
   • class: The Hive driver class for communicating with the Hive database
   • url: The HDInsight URL

   • path: List all the required JAR file details. The path follows the pattern mvn:jdbc-drivers/my_database_name/my_version.

     Sample path for Hive:

     ,
     {
         "id": "Hive HDInsight",
         "class": "org.apache.hive.jdbc.HiveDriver",
         "url": "jdbc:hive2://YOURCLUSTER.azurehdinsight.net:443/default;transportMode=http;ssl=true;httpPath=/hive2",
         "paths": [
                                     {"path": "mvn:jdbc-drivers/hive-jdbc-1.2.1000.2.6.0.3-8/6.4.0"}      ,
                                     {"path": "mvn:jdbc-drivers/hive-service-1.2.1000.2.6.0.3-8/6.4.0"},
                                     {"path": "mvn:jdbc-drivers/libthrift/0.9.3"}
                          ]
         }

6. Log in to Data Preparation.
7. Navigate to DATASETS.

8. Click ADD DATASET and select Database.





9. You have a new option, Hive HDInsight, available for Database type. Select Hive HDInsight and provide the details below:



   • Dataset name: hive_dataset, or any other name you choose
   • Database type: Hive HDInsight
   • JDBC URL: jdbc:hive2://YOURCLUSTER.azurehdinsight.net:443/default;transportMode=http;ssl=true;httpPath=/hive2, where YOURCLUSTER is the name of the HDInsight cluster
   • Username: The one you use for connecting to the HDInsight cluster

   • Password: The one you use for connecting to the HDInsight cluster





10. Click TEST CONNECTION.





11. This article uses the query select * from hivesampletable, however, change Query as required and click ADD DATASET.

12. A new dataset, hive_dataset, is created by connecting to Hive in HDInsight.



Conclusion

Data preparation is a very powerful yet simple-to-use tool for creating datasets and preparations to deliver cleansed, structured, enriched data to business users. This article explained the process to add a database type using an example of Hive in HDInsight while working with Data Preparation on premises.

Overview

In some instances, when trying to access Talend Data Integration v. 6.1.1 files, the files can’t be unzipped.

Environment

You may get this error because your zipped files haven't been correctly unzipped or your data has been corrupted.

Symptoms/description

With Talend Data Integration, you get an error message when trying to unzip certain files, such as the Talend Installer or dist file. You may also get an error if you try to use the Talend Installer during your installation.

Resolution

The easiest way to solve this problem is to use a zipping/unzipping utility such as 7-zip or WinRAR, which can handle long Talend naming conventions.

1. Unzip the files using 7-zip or WinRAR.
2. Try using the Talend Installer to install Talend Data Integration.
3. If you’re installing manually, unzip the files with the utility and copy them for installation.
