Percentage of Total Count on Treemap
Hi,
I need help changing the way my treemap is displayed. On the attached screenshot, the count of inquiries is displayed for each different application. How can I change the count number to the percentage of the total count? Instead of having the number 105 displaying under CCaR, I need it to show 41.1% (105/255).
I didn't see it as an option under appearance. If I have to do an expression, please let me know what the expression would be. For the purpose of creating an expression, my current measure expression is Count(Application).
Thank you!
- « Previous Replies
-
- 1
- 2
- Next Replies »
Accepted Solutions


- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Hi,
you can use below expression to show the values in % irrespective of total value
=num(Count(Application)/ Count(total Application ),'#,##0.00%')
and you need to Select number formatting as Measure Expression.
in my case i have used this expression =num(sum([BILLED QUANTITY])/sum(total [BILLED QUANTITY]),'#,##0.00%')
if you found this helpful, please mark as helpful or correct
Regards.
Bhasker Kumar


- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Are you doing it in QlikView or Qlik Sense....?


- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Go to expression tab and make it Relative Checkbox on
hope so it will works.


- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content

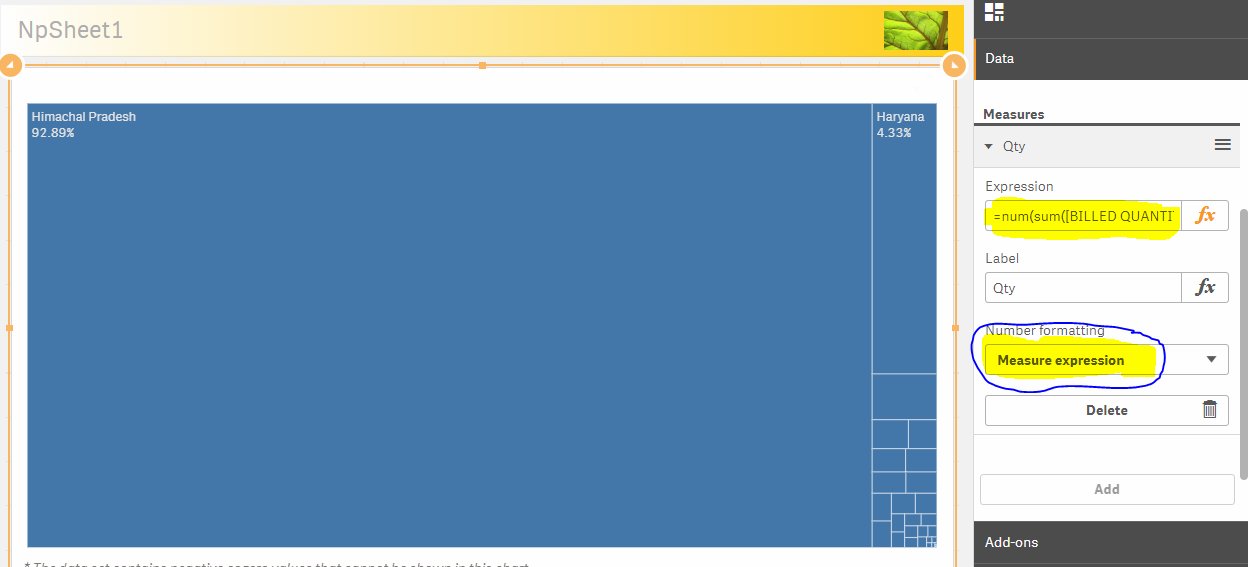

Hi,
you can use below expression to show the values in % irrespective of total value
=num(Count(Application)/ Count(total Application ),'#,##0.00%')
and you need to Select number formatting as Measure Expression.
in my case i have used this expression =num(sum([BILLED QUANTITY])/sum(total [BILLED QUANTITY]),'#,##0.00%')
if you found this helpful, please mark as helpful or correct
Regards.
Bhasker Kumar

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content

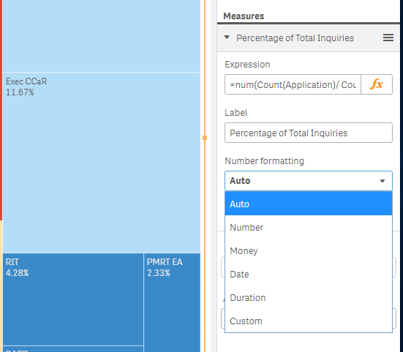

Thank you so much! The expression worked. I didn't have "measure expression" on the drop down. See screenshot. Any idea why?

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
I've never seen a screen like this in Qlik Sense before. Is your screenshot from Qlik Sense or somehwere else?

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Qlik Sense


- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
i am using latest vesion - qlik sense feb 2018, which has this option

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
cool, thanks. how can I find out which version I’m using?


- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content

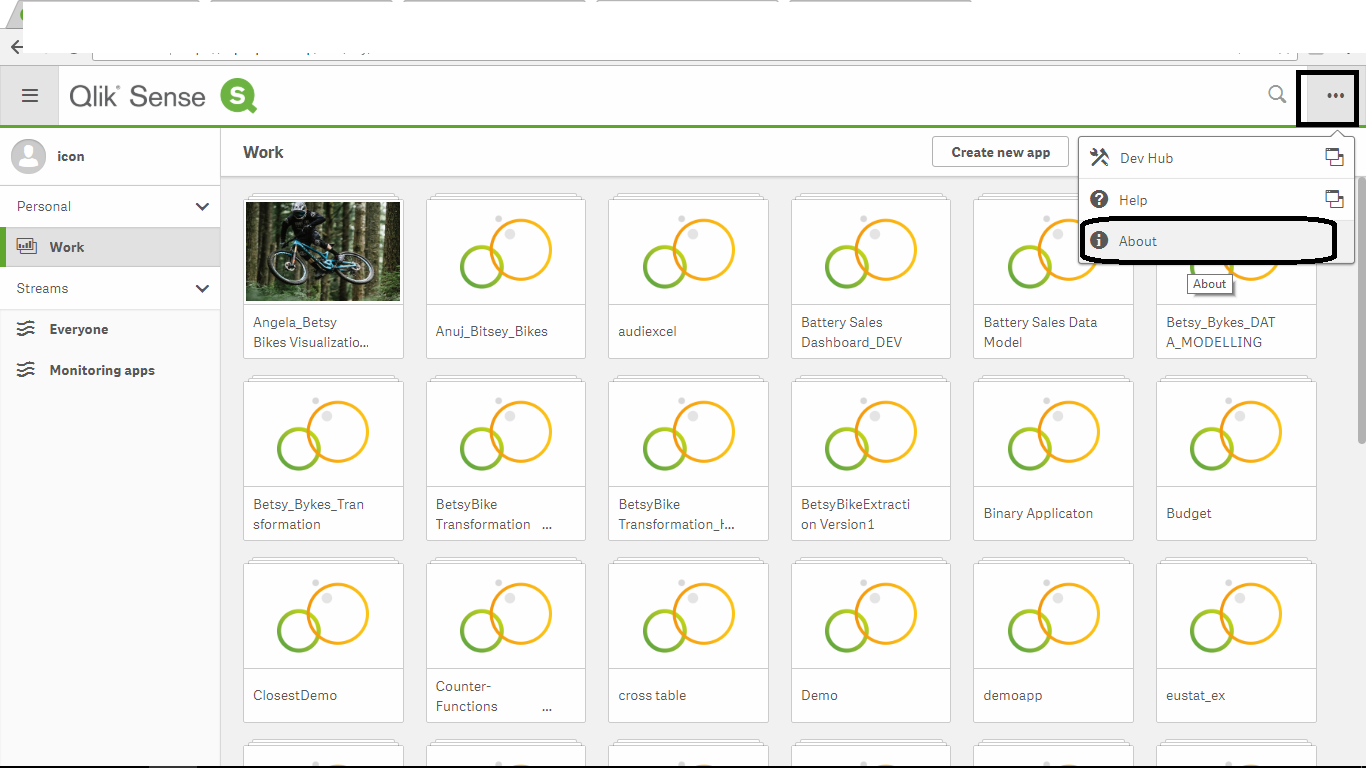

PFB - Goto->top -> right hand corner-Click on that-->then About-> then Version will shown
